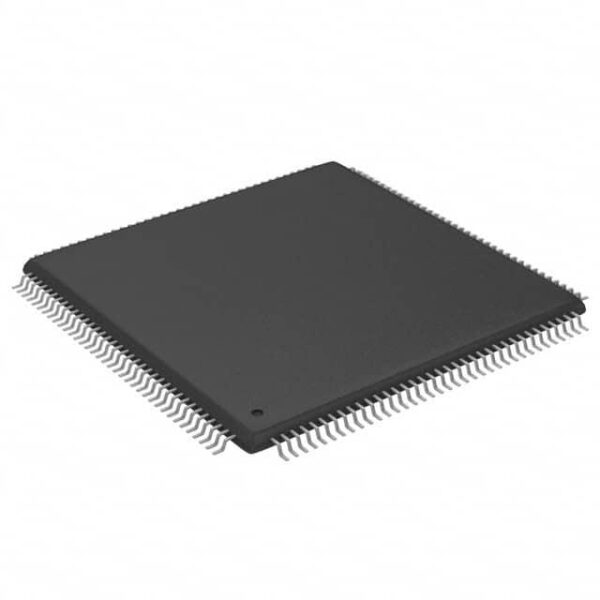

| Specification of XC2C256-7TQG144C | |
|---|---|
| Status | Active |
| Series | CoolRunner II |
| Package | Tray |
| Supplier | AMD |
| Digi-Key Programmable | Not Verified |
| Programmable Type | In System Programmable |
| Delay Time tpd(1) Max | 6.7 ns |
| Voltage Supply – Internal | 1.7V ~ 1.9V |
| Number of Logic Elements/Blocks | 16 |
| Number of Macrocells | 256 |
| Number of Gates | 6000 |
| Number of I/O | 118 |
| Operating Temperature | 0C ~ 70C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-TQFP (20×20) |
Applications
The XC2C256-7TQG144C is widely used in high-speed digital signal processing systems due to its high-speed performance and low power consumption. It is also utilized in automotive electronics for safety-critical applications such as airbag deployment sensors, where reliability and precision are paramount.
In industrial automation, it supports complex control algorithms that require precise timing and high-speed data transfer. Additionally, in consumer electronics, it enhances the performance of multimedia devices like smartphones and tablets, enabling faster data processing and improved user experience.
Operating Temperature: -40°C to +85°C
Key Advantages
1. High Speed Performance: The XC2C256-7TQG144C operates at speeds up to 100 MHz, making it suitable for high-speed digital signal processing tasks.
2. Unique Architecture Feature: It features a proprietary architecture that allows for efficient parallel processing, enhancing overall system performance.
3. Power Efficiency: With a typical power consumption of less than 1 mW per gate, it offers excellent energy efficiency, ideal for battery-operated devices.
4. Certification Standards: It meets stringent industry standards including ISO 9001 and CE marking, ensuring compliance and reliability across various markets.
Frequently Asked Questions
Q1: What is the typical power consumption of the XC2C256-7TQG144C?
A1: The typical power consumption of the XC2C256-7TQG144C is less than 1 mW per gate, making it highly power-efficient.
Q2: Can the XC2C256-7TQG144C be used in automotive applications?
A2: Yes, the XC2C256-7TQG144C can be used in automotive applications, particularly in safety-critical systems like airbag deployment sensors, thanks to its robust design and high reliability.
Q3: In which specific scenarios does the XC2C256-7TQG144C excel?
A3: The XC2C256-7TQG144C excels in scenarios requiring high-speed digital signal processing, such as in automotive safety systems, industrial automation control systems, and advanced multimedia devices in consumer electronics.
Other people’s search terms
– High-speed digital signal processors
– Automotive-grade microcontrollers
– Low-power embedded systems
– Industrial automation components
– Advanced multimedia processors
