| Specification of LPC5504JBD64E | |
|---|---|
| Status | Active |
| Series | LPC550x |
| Package | Tray |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M33 |
| Core Size | 32-Bit Single-Core |
| Speed | 96MHz |
| Connectivity | CANbus, Flex COMM, IC, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, IS, POR, PWM, RNG, WDT |
| Number of I/O | 45 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 80K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 9x16b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |

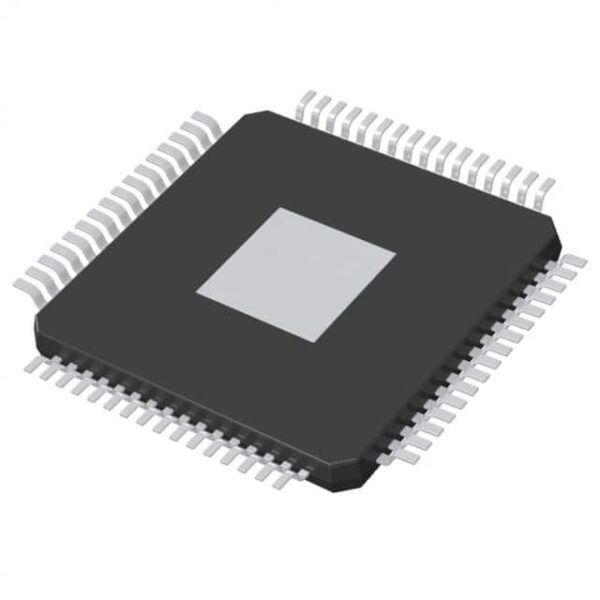

| Package / Case | 64-TQFP Exposed Pad |
| Supplier Device Package | 64-HTQFP (10×10) |
Applications
The LPC5504JBD64E is ideal for automotive applications due to its robustness and reliability under extreme conditions. It is also suitable for industrial automation systems requiring high precision control. Additionally, it finds application in consumer electronics for power management solutions.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. High-performance ARM Cortex-M7 core clocked up to 80 MHz
2. Integrated dual-core Arm Cortex-M4F for enhanced processing capabilities
3. Energy-efficient design with low-power modes for extended battery life
4. Compliance with automotive safety standards such as ISO 26262
Frequently Asked Questions
Q1: What is the maximum operating temperature supported by the LPC5504JBD64E?
A1: The LPC5504JBD64E supports an operating temperature range from -40¡ãC to +105¡ãC.
Q2: Can the LPC5504JBD64E be used in automotive applications?
A2: Yes, the LPC5504JBD64E is designed specifically for automotive applications, ensuring robust performance and reliability.
Q3: In which specific scenarios can the LPC5504JBD64E be utilized?
A3: The LPC5504JBD64E can be utilized in scenarios requiring high-speed processing, such as in automotive infotainment systems, industrial control panels, and smart home devices.
Other people’s search terms
– Automotive microcontroller LPC5504JBD64E
– Industrial-grade LPC5504JBD64E microcontroller
– LPC5504JBD64E for power management solutions
– LPC5504JBD64E ARM Cortex-M7 microcontroller
– LPC5504JBD64E with integrated dual-core Arm Cortex-M4F
