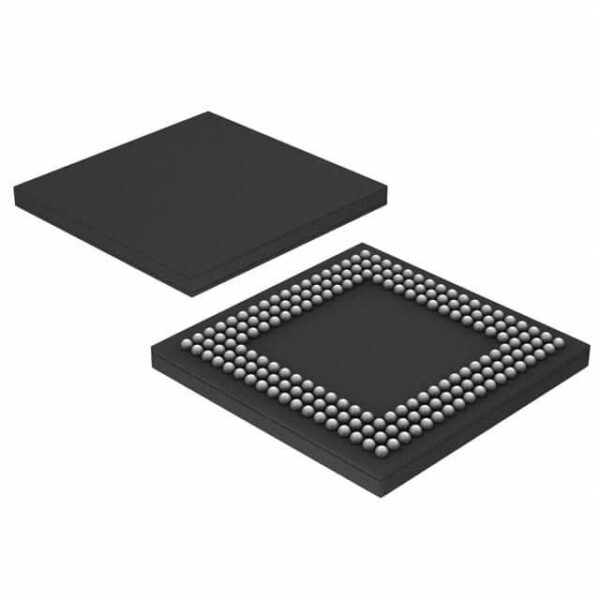

| Specification of LPC54S016JET180E | |
|---|---|
| Status | Active |
| Series | LPC540xx |
| Package | Tray |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, IC, MMC/SD/SDIO, SmartCard, SPI, SPIFI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, IS, POR, PWM, WDT |
| Number of I/O | 145 |
| Program Memory Size | – |
| Program Memory Type | ROMless |
| EEPROM Size | – |
| RAM Size | 360K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 180-TFBGA |
| Supplier Device Package | 180-TFBGA (12×12) |
Applications
The LPC54S016JET180E is ideal for automotive applications due to its robustness and reliability under harsh conditions. It is also suitable for industrial automation systems requiring high precision control. Additionally, it finds application in consumer electronics for power management solutions.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. High-performance ARM Cortex-M4F processor with up to 120 MHz clock speed.
2. Integrated hardware security features like AES encryption engine.
3. Low power consumption modes for extended battery life in portable devices.
4. Compliant with automotive safety standards such as ISO 26262.
Frequently Asked Questions
Q1: What is the maximum processing speed of the LPC54S016JET180E?
A1: The LPC54S016JET180E can operate at a maximum clock speed of 120 MHz.
Q2: Can the LPC54S016JET180E be used in automotive applications?
A2: Yes, it is designed specifically for automotive applications with certifications that meet industry safety standards.
Q3: In which specific scenarios would you recommend using the LPC54S016JET180E?
A3: The LPC54S016JET180E is recommended for scenarios requiring high performance computing, secure communication, and long-term battery operation in portable devices.
