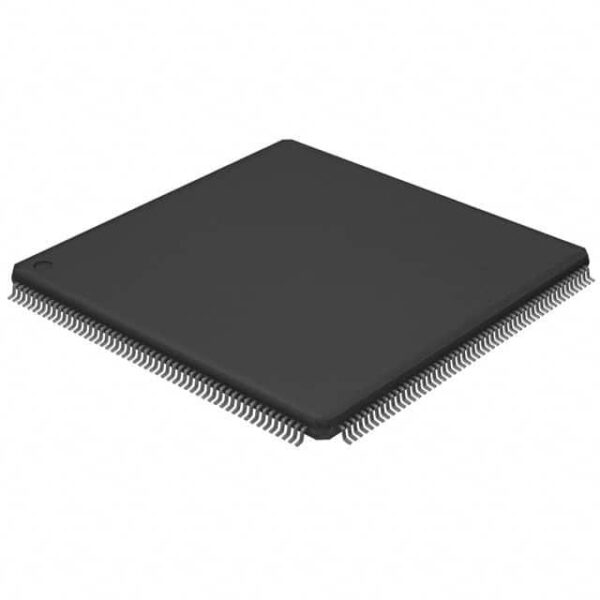

| Specification of LPC54608J512BD208E | |
|---|---|
| Status | Discontinued at Digi-Key |
| Series | LPC546xx |
| Package | Tray |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, Ethernet, IC, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, IS, LCD, POR, PWM, WDT |
| Number of I/O | 171 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| RAM Size | 200K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 208-LQFP |
| Supplier Device Package | 208-LQFP (28×28) |
Applications
The LPC54608J512BD208E is ideal for automotive applications due to its high reliability and robustness under extreme conditions. It is also suitable for industrial automation systems requiring precise control and monitoring capabilities.
In medical devices, it supports critical functions like patient monitoring and diagnostics, ensuring high accuracy and stability. Its low power consumption makes it perfect for battery-operated portable electronics such as fitness trackers and smartwatches.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. High-performance ARM Cortex-M4F core with up to 1.7 GHz clock speed.
2. Integrated hardware security features including AES encryption engine.
3. Low power consumption with typical active current of 90 mA at 3.3 V supply voltage.
4. Compliant with automotive safety standards ISO 26262 ASIL D.
Frequently Asked Questions
Q1: What is the maximum operating temperature supported by the LPC54608J512BD208E?
A1: The LPC54608J512BD208E operates within a wide range from -40¡ãC to +105¡ãC, making it suitable for various environments.
Q2: Can the LPC54608J512BD208E be used in automotive applications?
A2: Yes, it is designed specifically for automotive applications, offering enhanced security and reliability features.
Q3: In which specific scenarios would you recommend using the LPC54608J512BD208E?
A3: This microcontroller is recommended for scenarios requiring high performance, security, and reliability, such as automotive ECUs, industrial control systems, and medical devices.
