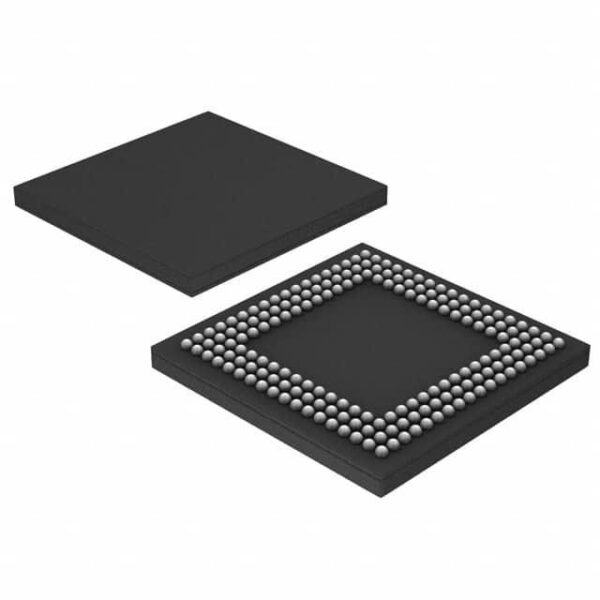

| Specification of LPC54607J512ET180E | |
|---|---|
| Status | Active |
| Series | LPC546xx |
| Package | Tray |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | IC, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, IS, LCD, POR, PWM, WDT |
| Number of I/O | 145 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| RAM Size | 200K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 180-TFBGA |
| Supplier Device Package | 180-TFBGA (12×12) |
Applications
The LPC54607J512ET180E is ideal for automotive applications due to its robustness and reliability under harsh conditions. It is also suitable for industrial automation systems requiring high precision control. Additionally, it finds application in consumer electronics for power management solutions.
Industry-Specific Implementations:
- Automotive: Used in vehicle infotainment systems for enhanced user interface responsiveness.
- Industrial Automation: Employed in machinery control panels for precise motor control.
- Consumer Electronics: Integrated into smart home devices for efficient energy consumption monitoring.
Technical Parameters:
- Operating Temperature Range: -40¡ãC to +105¡ãC
- Memory Size: 512KB Flash Memory
- CPU Speed: Up to 120MHz
Key Advantages
1. **High Performance CPU:** The LPC54607J512ET180E features a powerful ARM Cortex-M4F core that supports floating-point operations, enhancing computational capabilities.
2. **Advanced Security Features:** Equipped with hardware-based security mechanisms such as secure boot and encryption support, ensuring data integrity and confidentiality.
3. **Power Efficiency:** Designed with low-power modes and optimized clocking schemes, it offers excellent battery life in portable applications.
4. **Certification Standards:** Meets automotive safety standards like ISO 26262 and industrial safety requirements, making it suitable for critical applications.
Frequently Asked Questions
Q1: What are the main security features of the LPC54607J512ET180E?
A1: The LPC54607J512ET180E includes advanced security features such as secure boot, which prevents unauthorized firmware from being loaded, and hardware-based encryption support for protecting sensitive data.
Q2: Can the LPC54607J512ET180E be used in automotive applications?
A2: Yes, the LPC54607J512ET180E is certified to meet automotive safety standards like ISO 26262, making it suitable for use in automotive systems.
Q3: In which specific scenarios can the LPC54607J512ET180E be utilized?
A3: The LPC54607J512ET180E can be utilized in scenarios requiring high performance and security, such as in automotive infotainment systems, industrial control panels, and smart home devices.
