| Specification of LPC54607J256BD208551 | |
|---|---|
| Status | Active |
| Series | LPC546xx |
| Package | Bulk |
| Supplier | Rochester Electronics, LLC |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | IC, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, IS, LCD, POR, PWM, WDT |
| Number of I/O | 171 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| RAM Size | 136K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |

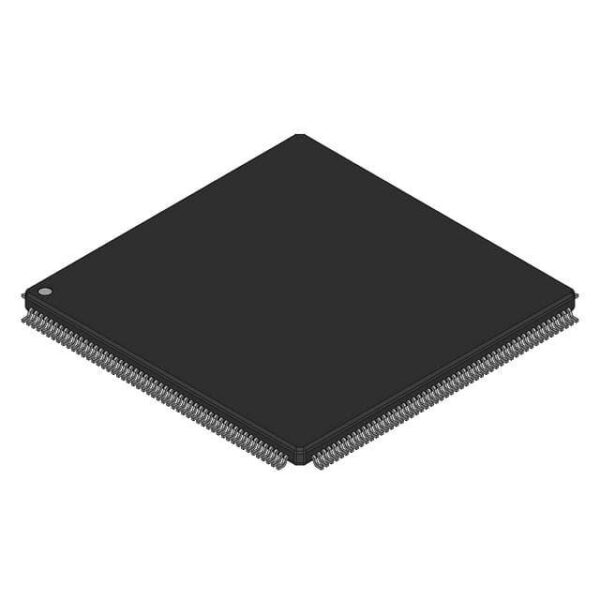

| Package / Case | 208-LQFP |
| Supplier Device Package | 208-LQFP (28×28) |
Applications
The LPC54607J256BD208551 is ideal for automotive applications due to its robustness and reliability under harsh conditions. It is also suitable for industrial automation systems requiring high precision control. Additionally, it finds application in consumer electronics for power management solutions.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. High-performance ARM Cortex-M4F core at up to 120 MHz clock speed.
2. Integrated hardware security features like AES encryption engine.
3. Low power consumption with typical active current of 90 mA at 3.3 V supply voltage.
4. Compliant with ISO 26262 safety standard for automotive applications.
Frequently Asked Questions
Q1: What is the maximum operating temperature supported by the LPC54607J256BD208551?
A1: The LPC54607J256BD208551 supports an operating temperature range from -40¡ãC to +105¡ãC.
Q2: Can the LPC54607J256BD208551 be used in automotive applications?
A2: Yes, the LPC54607J256BD208551 is compliant with ISO 26262 safety standards, making it suitable for automotive applications that require high levels of safety and reliability.
Q3: In which specific scenarios can the LPC54607J256BD208551 be utilized effectively?
A3: The LPC54607J256BD208551 can be effectively utilized in scenarios such as advanced driver assistance systems (ADAS), vehicle infotainment systems, and industrial automation controls where precise and reliable performance is critical.
Other people’s search terms
– Automotive microcontroller LPC54607J256BD208551
– Industrial automation LPC54607J256BD208551
– Consumer electronics LPC54607J256BD208551
– High-performance LPC54607J256BD208551
– Secure LPC54607J256BD208551
