| Specification of LPC54606J512BD208K | |
|---|---|
| Status | Active |
| Series | LPC546xx |
| Package | Tray |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, Ethernet, IC, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, IS, POR, PWM, WDT |
| Number of I/O | 171 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| RAM Size | 200K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 12x12b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |

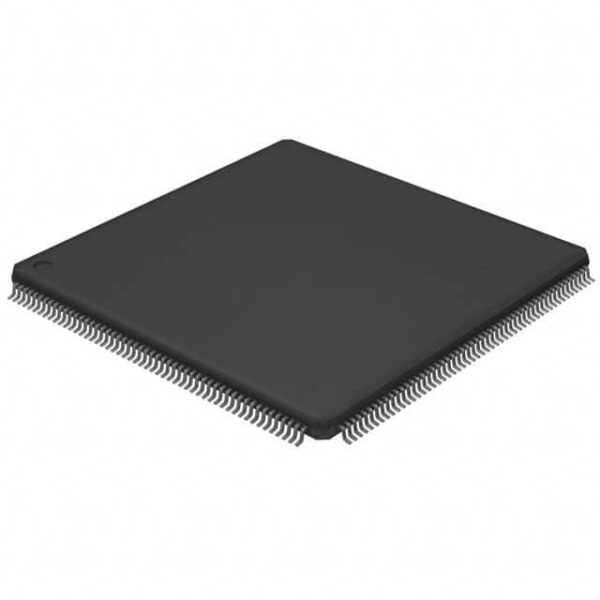

| Package / Case | 208-LQFP |
| Supplier Device Package | 208-LQFP (28×28) |
Applications
The LPC54606J512BD208K is ideal for automotive applications due to its robustness and reliability under harsh conditions. It is also suitable for industrial automation systems requiring high precision control. Additionally, it finds application in consumer electronics for power management solutions.
Industry-Specific Implementations:
- Automotive: Used in engine control units for precise fuel injection timing.
- Industrial Automation: Employed in machinery control for high-speed data processing.
- Consumer Electronics: Utilized in smart home devices for energy-efficient operation.
Technical Parameters:
- Operating Temperature Range: -40¡ãC to +125¡ãC
- Memory Size: 512KB Flash Memory
- I/O Pins: 208-pin LQFP Package
Key Advantages
1. **High Performance ARM Cortex-M4 Processor:** Offers up to 120 MHz clock speed, enabling fast execution of complex algorithms.
2. **Advanced Security Features:** Includes hardware-based encryption engines for secure communication and data protection.
3. **Power Efficiency:** Equipped with low-power modes that reduce energy consumption during inactive states.
4. **Certification Standards:** Meets automotive safety standards such as ISO 26262 and IEC 61508, ensuring compliance with safety regulations.
Frequently Asked Questions
Q1: What are the security features of the LPC54606J512BD208K?
A1: The LPC54606J512BD208K includes hardware-based encryption engines which provide strong security for data transmission and storage.
Q2: Is the LPC54606J512BD208K compatible with other components in my system?
A2: Yes, the LPC54606J512BD208K is designed to be highly compatible with various peripherals and other microcontrollers through standard interfaces like UART, SPI, and I2C.
Q3: In which specific scenarios would you recommend using the LPC54606J512BD208K?
A3: The LPC54606J512BD208K is recommended for scenarios requiring high performance and security, such as automotive ECU applications, industrial control systems, and advanced consumer electronics.
