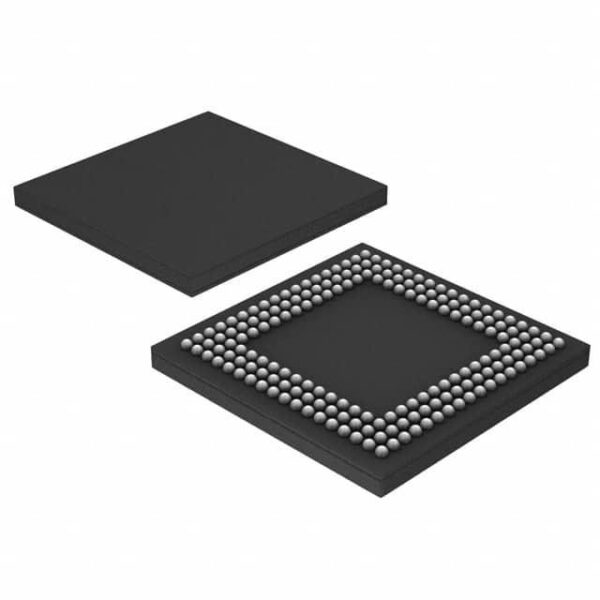

| Specification of LPC54605J512ET180K | |
|---|---|
| Status | Active |
| Series | LPC546xx |
| Package | Bulk |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | IC, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, IS, POR, PWM, WDT |
| Number of I/O | 145 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| RAM Size | 200K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 180-TFBGA |
| Supplier Device Package | 180-TFBGA (12×12) |
Applications
The LPC54605J512ET180K is ideal for automotive applications due to its high reliability and robustness under extreme conditions. It is also suitable for industrial automation systems requiring precise control and monitoring capabilities.
In medical devices, it supports critical functions like patient monitoring and diagnostics, ensuring high accuracy and stability. Its low power consumption makes it perfect for battery-operated portable electronics such as fitness trackers and smartwatches.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. High-performance ARM Cortex-M4F core with up to 1.7 GHz clock speed.
2. Integrated hardware security features including AES encryption engine.
3. Low power consumption with typical active current of 90 mA at 3.3 V supply voltage.
4. Compliant with automotive safety standards ISO 26262 ASIL D.
Frequently Asked Questions
Q1: What is the maximum operating temperature supported by the LPC54605J512ET180K?
A1: The LPC54605J512ET180K operates within a wide range from -40¡ãC to +105¡ãC, making it suitable for various environments.
Q2: Can the LPC54605J512ET180K be used in automotive applications?
A2: Yes, it is designed specifically for automotive applications, offering enhanced security and reliability features.
Q3: In which specific scenarios would you recommend using the LPC54605J512ET180K?
A3: This microcontroller is recommended for scenarios requiring high performance, security, and reliability, such as automotive ECUs, industrial control systems, and medical devices.
