| Specification of LPC54605J256BD100E | |
|---|---|
| Status | Active |
| Series | LPC546xx |
| Package | Tray,Tray |
| Supplier | Rochester Electronics, LLC,NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | IC, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, IS, POR, PWM, WDT |
| Number of I/O | 64 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| RAM Size | 136K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |

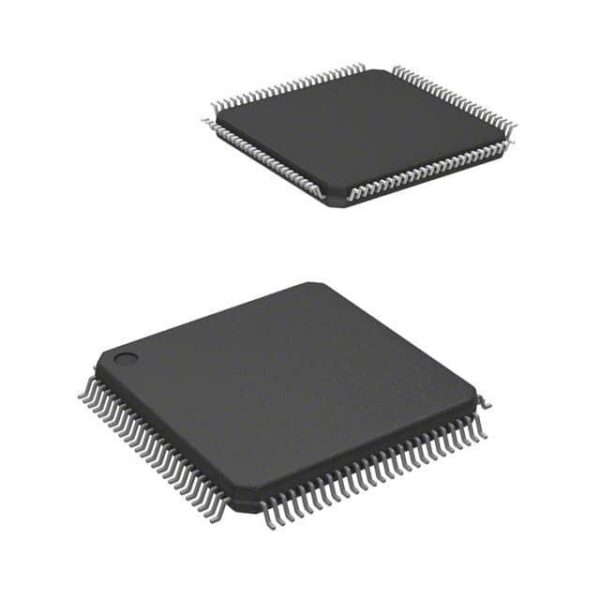

| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LQFP (14×14) |
Applications
The LPC54605J256BD100E is ideal for automotive applications due to its robustness and reliability under harsh conditions. It is also suitable for industrial automation systems requiring high precision control. Additionally, it finds application in consumer electronics for power management solutions.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. High-performance ARM Cortex-M4F core with up to 180 MHz clock speed.
2. Integrated hardware security features like AES encryption engine.
3. Low power consumption with typical active current of 70 mA at 3.3V.
4. Compliant with ISO 26262 safety standard for automotive applications.
Frequently Asked Questions
Q1: What is the maximum operating temperature of the LPC54605J256BD100E?
A1: The maximum operating temperature is +105¡ãC.
Q2: Can the LPC54605J256BD100E be used in automotive applications?
A2: Yes, it is compliant with ISO 26262 and is suitable for automotive applications.
Q3: In which specific scenarios can the LPC54605J256BD100E be utilized?
A3: It can be used in automotive infotainment systems, industrial automation controllers, and consumer electronics for power management.
