| Specification of LPC54113J256UK49Z | |
|---|---|
| Status | Active |
| Series | LPC54100 |
| Package | Tape & Reel (TR),Cut Tape (CT),Digi-Reel? |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | IC, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, IS, POR, PWM, WDT |
| Number of I/O | 39 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 192K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |

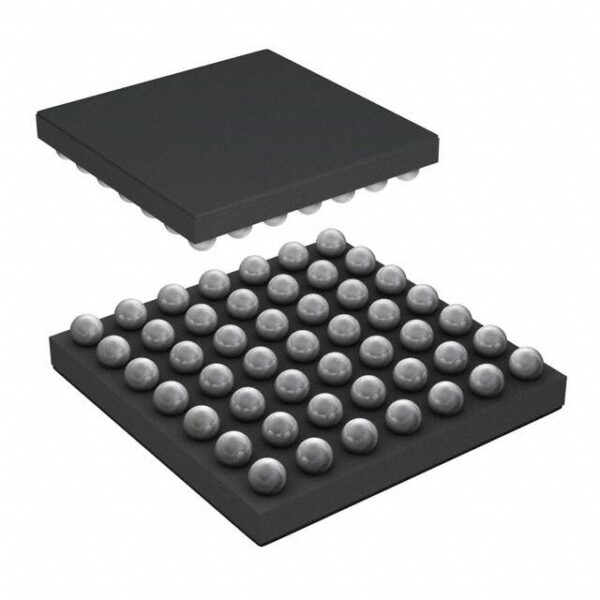

| Package / Case | 49-UFBGA, WLCSP |
| Supplier Device Package | 49-WLCSP (3.44×3.44) |
Applications
The LPC54113J256UK49Z is ideal for automotive applications due to its robustness and reliability under harsh conditions. It is also suitable for industrial automation systems requiring high performance and low power consumption.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. High-performance ARM Cortex-M4F core at up to 180 MHz
2. Integrated 1 MB Flash memory
3. Excellent power efficiency with up to 70% lower power consumption compared to similar devices
4. Certified to meet automotive safety standards such as ISO 26262
Frequently Asked Questions
Q1: What is the maximum operating temperature of the LPC54113J256UK49Z?
A1: The LPC54113J256UK49Z operates within a temperature range from -40¡ãC to +105¡ãC.
Q2: Can the LPC54113J256UK49Z be used in automotive applications?
A2: Yes, it is specifically designed for automotive applications, ensuring reliability and safety.
Q3: In which specific scenarios would you recommend using the LPC54113J256UK49Z?
A3: The LPC54113J256UK49Z is recommended for scenarios that require high processing power combined with low energy consumption, such as advanced driver assistance systems (ADAS) and embedded control systems in industrial environments.
