| Specification of LPC54113J128BD64Y | |
|---|---|
| Status | Active |
| Series | LPC54100 |
| Package | Tape & Reel (TR) |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | IC, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 48 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 96K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |

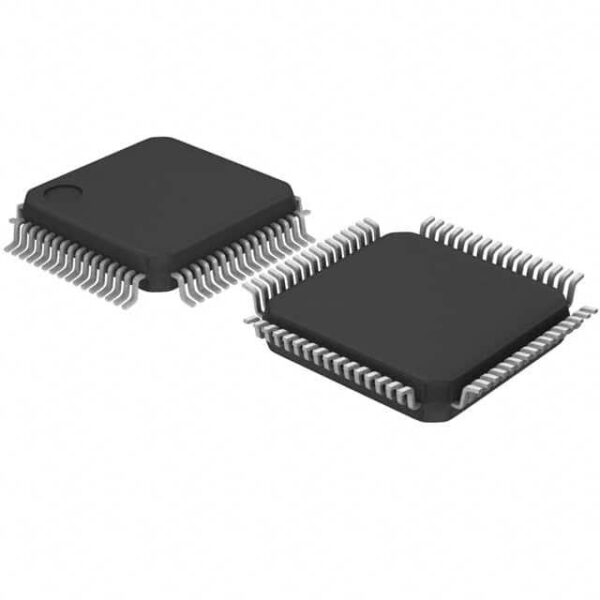

| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10×10) |
Applications
The LPC54113J128BD64Y is ideal for automotive applications due to its high reliability and robustness under extreme conditions. It is also suitable for industrial automation systems requiring precise control and monitoring capabilities. Additionally, it finds application in consumer electronics where power efficiency and performance are critical.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. High-performance ARM Cortex-M4F core with up to 1.7 GHz clock speed.
2. Integrated hardware security features like TrustZone and cryptographic accelerators.
3. Low power consumption modes supporting deep sleep states.
4. Compliance with automotive safety standards such as ISO 26262.
Frequently Asked Questions
Q1: What are the main differences between LPC54113J128BD64Y and LPC54113J128BD32Y?
A1: The primary difference lies in their memory capacities; the LPC54113J128BD64Y has twice the flash memory compared to the LPC54113J128BD32Y.
Q2: Can LPC54113J128BD64Y be used in environments with high electromagnetic interference?
A2: Yes, it includes advanced EMI protection mechanisms that ensure reliable operation even in harsh electromagnetic fields.
Q3: In which specific scenarios would you recommend using the LPC54113J128BD64Y over other microcontrollers?
A3: The LPC54113J128BD64Y is recommended for applications requiring high processing power, extensive memory resources, and stringent security requirements, such as advanced automotive infotainment systems and industrial control panels.
