| Specification of LPC54016JET100E | |
|---|---|
| Status | Active |
| Series | LPC540xx |
| Package | Tray |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, IC, MMC/SD/SDIO, SmartCard, SPI, SPIFI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, IS, POR, PWM, WDT |
| Number of I/O | 64 |
| Program Memory Size | – |
| Program Memory Type | ROMless |
| EEPROM Size | – |
| RAM Size | 360K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |

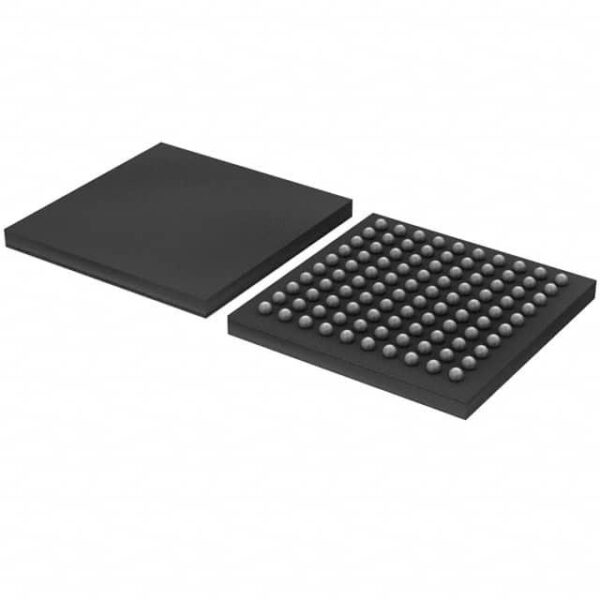

| Package / Case | 100-TFBGA |
| Supplier Device Package | 100-TFBGA (9×9) |
Applications
The LPC54016JET100E is ideal for automotive applications due to its high reliability and robustness under extreme conditions. It is also suitable for industrial automation systems requiring precise control and monitoring capabilities.
In medical devices, it supports critical functions like patient monitoring and diagnostics, ensuring high accuracy and safety. Its low power consumption makes it perfect for battery-operated portable electronics such as fitness trackers and smartwatches.
The LPC54016JET100E can be found in various embedded systems that require efficient processing and communication, such as home automation systems and smart home appliances.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. High Performance Cortex-M4 Processor with Floating Point Unit (FPU) supporting up to 180 DMIPS at 180 MHz clock speed.
2. Integrated 1 MB Flash Memory and 256 KB SRAM for fast data processing and storage.
3. Low Power Consumption with support for multiple sleep modes and adaptive clocking.
4. Compliance with ISO 26262 Functional Safety Standard for automotive applications.
Frequently Asked Questions
Q1: What is the maximum operating temperature supported by the LPC54016JET100E?
A1: The LPC54016JET100E operates within a wide temperature range from -40¡ãC to +105¡ãC, making it suitable for both harsh environments and consumer electronics.
Q2: Can the LPC54016JET100E be used in automotive applications?
A2: Yes, the LPC54016JET100E is certified according to ISO 26262, which ensures its suitability for automotive applications requiring high levels of safety and reliability.
Q3: In which specific scenarios would you recommend using the LPC54016JET100E?
A3: The LPC54016JET100E is recommended for scenarios involving real-time processing, high-performance computing tasks, and applications that require low-power operation while maintaining high performance.
