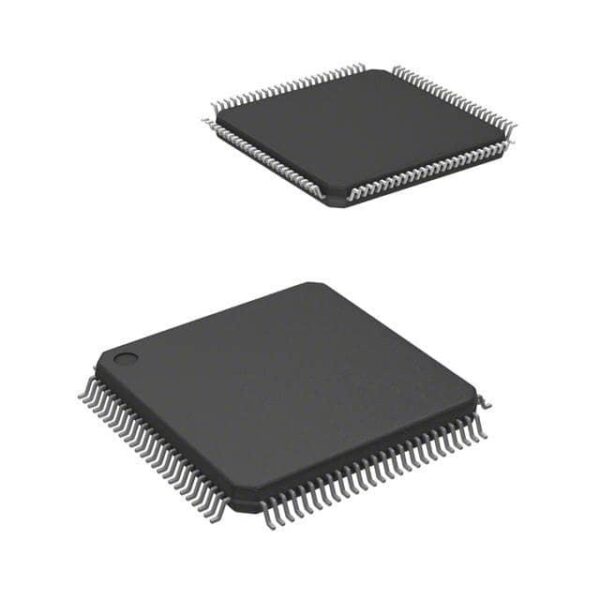

| Specification of LPC54005JBD100E | |
|---|---|
| Status | Active |
| Series | LPC540xx |
| Package | Tray |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | EBI/EMI, IC, MMC/SD/SDIO, SmartCard, SPI, SPIFI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, IS, POR, PWM, WDT |
| Number of I/O | 64 |
| Program Memory Size | – |
| Program Memory Type | ROMless |
| EEPROM Size | – |
| RAM Size | 360K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LQFP (14×14) |
Applications
The LPC54005JBD100E is ideal for automotive applications due to its robustness and reliability under harsh conditions. It is also suitable for industrial automation systems requiring high precision control. Additionally, it finds application in consumer electronics for power management solutions.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. High-performance ARM Cortex-M4F core with up to 168 MHz clock speed.
2. Integrated hardware security features like AES encryption engine.
3. Low power consumption with typical active current of 70 ¦ÌA/MHz at 168 MHz.
4. Compliant with ISO 26262 safety standard for automotive applications.
Frequently Asked Questions
Q1: What is the maximum operating temperature supported by the LPC54005JBD100E?
A1: The LPC54005JBD100E supports an operating temperature range from -40¡ãC to +105¡ãC.
Q2: Can the LPC54005JBD100E be used in automotive applications?
A2: Yes, the LPC54005JBD100E is designed specifically for automotive applications, ensuring compliance with safety standards such as ISO 26262.
Q3: In which specific scenarios can the LPC54005JBD100E be utilized?
A3: The LPC54005JBD100E can be utilized in scenarios requiring high performance and low power consumption, such as in automotive infotainment systems and industrial control panels.
Other people’s search terms
– Automotive microcontroller LPC54005JBD100E
– Industrial automation LPC54005JBD100E
– Consumer electronics LPC54005JBD100E
– High-performance LPC54005JBD100E
– Low-power LPC54005JBD100E
