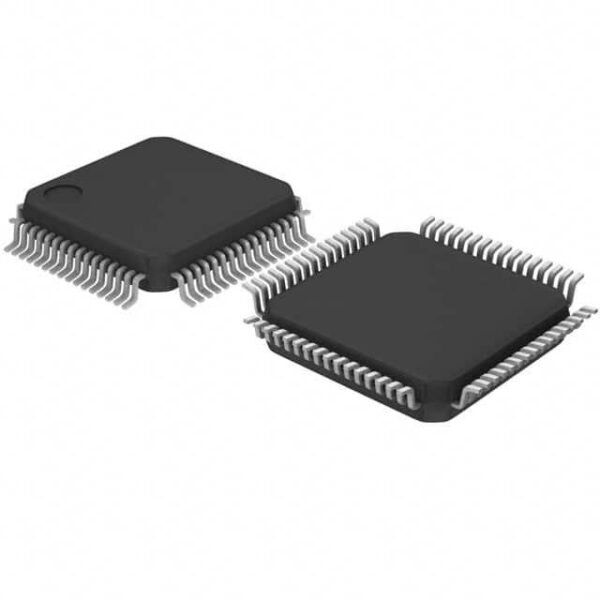

| Specification of LPC51U68JBD64EL | |
|---|---|
| Status | Active |
| Series | LPC51U |
| Package | Tray |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | USART, SPIs, I2C, USB |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Number of I/O | 48 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| RAM Size | 96K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 12x12b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10×10) |
Applications
The LPC51U68JBD64EL is ideal for automotive applications due to its robustness and reliability under harsh conditions. It is also suitable for industrial automation systems requiring high precision control. Additionally, it finds application in consumer electronics for power management solutions.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. High-performance ARM Cortex-M4F core with up to 120 MHz clock speed.
2. Integrated hardware cryptography engine for secure communication.
3. Low power consumption modes for extended battery life in portable devices.
4. Compliant with ISO 26262 safety standard for automotive use.
Frequently Asked Questions
Q1: What is the maximum operating temperature supported by the LPC51U68JBD64EL?
A1: The LPC51U68JBD64EL supports an operating temperature range from -40¡ãC to +105¡ãC.
Q2: Can the LPC51U68JBD64EL be used in automotive applications?
A2: Yes, the LPC51U68JBD64EL is compliant with ISO 26262 safety standards, making it suitable for automotive applications.
Q3: In which specific scenarios can the LPC51U68JBD64EL be utilized?
A3: The LPC51U68JBD64EL can be used in scenarios such as automotive infotainment systems, industrial control panels, and smart home devices.
