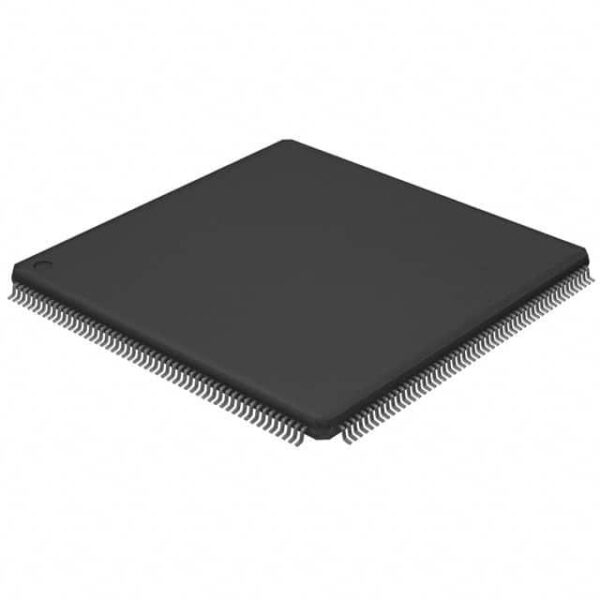

| Specification of LPC43S67JBD208E | |
|---|---|
| Status | Active |
| Series | LPC43xx |
| Package | Bulk |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M4/M0 |
| Core Size | 32-Bit Dual-Core |
| Speed | 204MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, IC, IrDA, Microwire, MMC/SD, QEI, SPI, SSI, SSP, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, IS, LCD, POR, PWM, WDT |
| Number of I/O | 142 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| RAM Size | 154K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Data Converters | A/D 16x10b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 208-LQFP |
| Supplier Device Package | 208-LQFP (28×28) |
Applications
The LPC43S67JBD208E is ideal for automotive applications due to its robustness and reliability under harsh conditions. It is also suitable for industrial automation systems requiring high performance and low power consumption.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. High-performance ARM Cortex-M4F processor with up to 120 MHz clock speed.
2. Integrated USB 2.0 Full-speed controller.
3. Excellent power efficiency with a typical active mode current of 100 mA at 3.3 V supply voltage.
4. Meets automotive safety standards such as ISO 26262 ASIL D.
Frequently Asked Questions
Q1: What is the maximum operating temperature supported by the LPC43S67JBD208E?
A1: The LPC43S67JBD208E supports an operating temperature range from -40¡ãC to +105¡ãC.
Q2: Can the LPC43S67JBD208E be used in automotive applications?
A2: Yes, it is designed specifically for automotive applications, ensuring robustness and reliability in harsh environments.
Q3: In which specific scenarios can the LPC43S67JBD208E be utilized effectively?
A3: The LPC43S67JBD208E can be effectively utilized in scenarios requiring high processing power and low power consumption, such as in automotive infotainment systems and industrial control panels.
