| Specification of LPC43S37JBD144551 | |
|---|---|
| Status | Active |
| Series | LPC43xx |
| Package | Bulk |
| Supplier | Rochester Electronics, LLC |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M4/M0 |
| Core Size | 32-Bit Dual-Core |
| Speed | 204MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, IC, IrDA, Microwire, MMC/SD, SPI, SSI, SSP, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, IS, POR, WDT |
| Number of I/O | 83 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 136K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Data Converters | A/D 8x10b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |

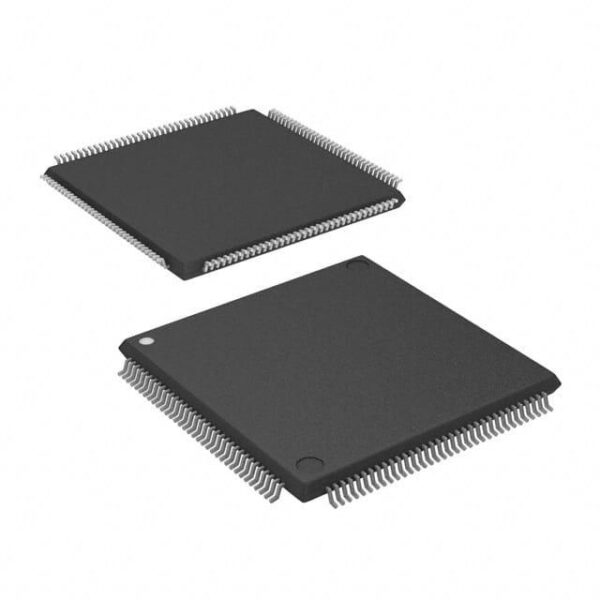

| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LQFP (20×20) |
Applications
The LPC43S37JBD144551 is ideal for automotive applications due to its robustness and reliability under harsh conditions. It is also suitable for industrial automation systems requiring high performance and low power consumption.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. High-performance ARM Cortex-M4F processor with up to 168 MHz clock speed.
2. Integrated USB 2.0 Full-speed controller.
3. Low power consumption modes for extended battery life.
4. Compliance with automotive safety standards such as ISO 26262.
Frequently Asked Questions
Q1: What is the maximum operating temperature supported by the LPC43S37JBD144551?
A1: The LPC43S37JBD144551 supports an operating temperature range from -40¡ãC to +105¡ãC.
Q2: Can the LPC43S37JBD144551 be used in automotive applications?
A2: Yes, it is designed specifically for automotive applications, ensuring robustness and reliability in harsh environments.
Q3: In which specific scenarios would you recommend using the LPC43S37JBD144551?
A3: The LPC43S37JBD144551 is recommended for scenarios that require high processing power combined with low power consumption, such as in automotive infotainment systems and industrial control panels.
Other people’s search terms
– Automotive microcontroller LPC43S37JBD144551
– Industrial automation LPC43S37JBD144551
– Low-power ARM Cortex-M4F LPC43S37JBD144551
– USB 2.0 LPC43S37JBD144551
– ISO 26262 certified LPC43S37JBD144551
