| Specification of LPC1825JET100E | |
|---|---|
| Status | Active |
| Series | LPC18xx |
| Package | Bulk,Tray |
| Supplier | Rochester Electronics, LLC,NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, IC, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, IS, POR, WDT |
| Number of I/O | 49 |
| Program Memory Size | 768KB (768K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| RAM Size | 136K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Data Converters | A/D 4x10b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |

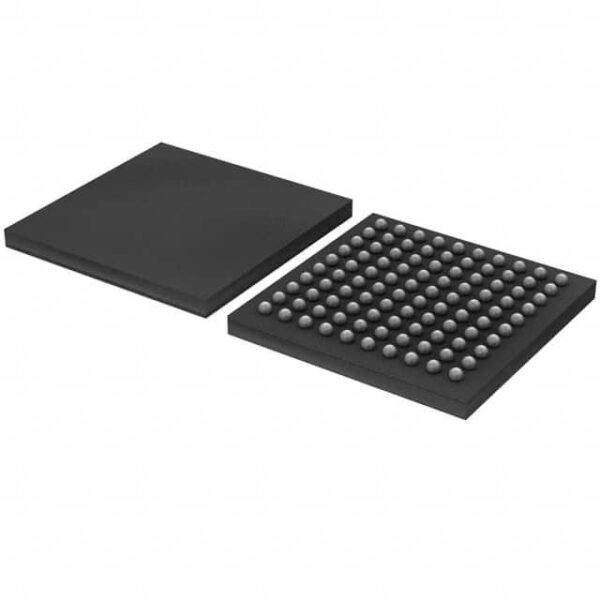

| Package / Case | 100-TFBGA |
| Supplier Device Package | 100-TFBGA (9×9) |
Applications
The LPC1825JET100E is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and performance.
- Consumer Electronics: Ideal for smart home devices due to its energy-efficient design.
- Automotive: Supports automotive electronics with its robustness against harsh environments.
- Medical Devices: Suitable for medical equipment that demands precise timing and low power consumption.
- IoT Devices: Perfect for Internet of Things applications needing long battery life and minimal processing overhead.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. **High Performance Cortex-M4 Processor:** Offers up to 160 MHz clock speed, supporting complex computational tasks efficiently.
2. **Flexible Memory Configuration:** Supports up to 1 MB Flash memory and 256 KB SRAM, enhancing storage options.
3. **Power Efficiency:** Equipped with a low-power sleep mode and dynamic voltage scaling for extended battery life.
4. **Certification Standards:** Meets automotive safety standards such as ISO 26262 and has been certified for industrial applications.
Frequently Asked Questions
Q1: What is the maximum operating temperature supported by the LPC1825JET100E?
A1: The LPC1825JET100E supports an operating temperature range from -40¡ãC to +105¡ãC, making it suitable for a wide variety of environments.
Q2: Can the LPC1825JET100E be used in automotive applications?
A2: Yes, the LPC1825JET100E meets automotive safety standards like ISO 26262 and is certified for use in industrial applications, which includes automotive.
Q3: In which specific scenarios would you recommend using the LPC1825JET100E?
A3: The LPC1825JET100E is recommended for scenarios requiring high performance and low power consumption, such as in consumer electronics for smart home devices, IoT applications, and industrial automation systems.
