| Specification of LPC1812JET100E | |
|---|---|
| Status | Active |
| Series | LPC18xx |
| Package | Tray |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, IC, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, IS, POR, WDT |
| Number of I/O | 49 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| RAM Size | 104K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Data Converters | A/D 4x10b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |

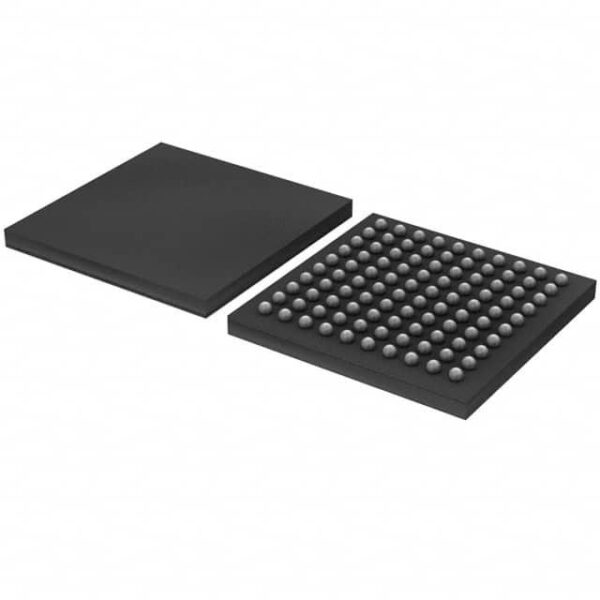

| Package / Case | 100-TFBGA |
| Supplier Device Package | 100-TFBGA (9×9) |
Applications
The LPC1812JET100E is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and performance.
- Consumer Electronics: Ideal for smart home devices due to its low power consumption and efficient processing capabilities.
- Automotive: Suitable for automotive electronics where robustness and energy efficiency are critical.
- Medical Devices: Can be utilized in medical equipment that demands precise timing and minimal power usage.
- Embedded Systems: Commonly found in embedded systems where it provides reliable operation under varying conditions.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. **High Performance Cortex-M3 Processor:** Offers up to 72 MHz clock speed and supportsThumb-2 instruction set.
2. **Advanced Memory Management Unit (MMU):** Enhances memory protection and security features.
3. **Power Efficiency:** Equipped with a low-power sleep mode and multiple power management modes.
4. **Certification Standards:** Meets automotive safety standards such as ISO 26262 and industrial standards like IEC 61508.
Frequently Asked Questions
Q1: What is the maximum operating temperature supported by the LPC1812JET100E?
A1: The LPC1812JET100E operates within a temperature range from -40¡ãC to +105¡ãC.
Q2: Is the LPC1812JET100E suitable for automotive applications?
A2: Yes, it meets automotive safety standards like ISO 26262 and can be used in automotive electronics.
Q3: In which specific scenarios would you recommend using the LPC1812JET100E?
A3: The LPC1812JET100E is recommended for applications requiring high performance, low power consumption, and robustness, such as smart home devices, industrial automation systems, and automotive electronics.
