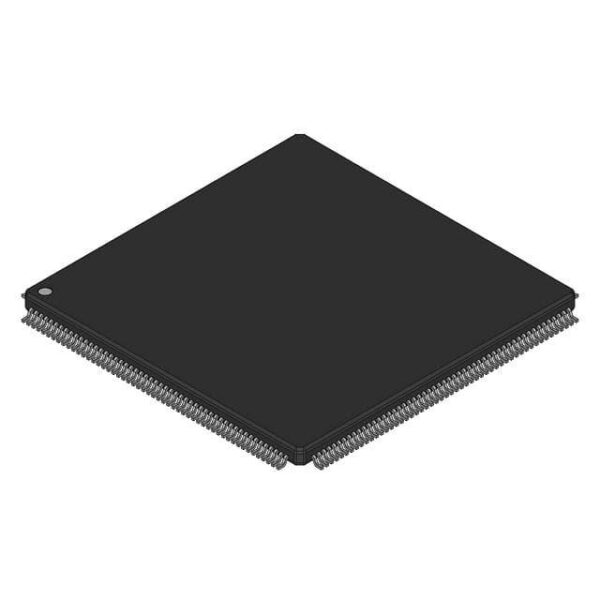

| Specification of LPC1785FBD208557 | |
|---|---|
| Status | Active |
| Series | LPC17xx |
| Package | Bulk |
| Supplier | Rochester Electronics, LLC |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, IC, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, IS, LCD, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 165 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 80K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Data Converters | A/D 8x12b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 85C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 208-LQFP |
| Supplier Device Package | 208-LQFP (28×28) |
Applications
The LPC1785FBD208557 is versatile and suitable for various applications across different industries:
- Automotive: Used in vehicle diagnostics systems due to its robustness at temperatures ranging from -40¡ãC to +105¡ãC.
- Industrial Automation: Ideal for control systems requiring high reliability and performance within harsh environments.
- Consumer Electronics: Commonly found in smart home devices like thermostats and security cameras.
- Medical Devices: Suitable for portable medical equipment that needs precise timing and low power consumption.
- Embedded Systems: Widely used in embedded applications such as IoT devices and small-scale computing solutions.
Key Advantages
1. **High Performance ARM Cortex-M3 Processor:** Operates at up to 96 MHz, providing fast processing capabilities.
2. **Advanced Memory Management Unit (MMU):** Enhances memory protection and virtualization support.
3. **Power Efficiency:** Equipped with a low-power sleep mode and multiple clock sources for optimized energy usage.
4. **Certification Standards:** Meets automotive safety standards such as ISO 26262 and industrial standards like IEC 61508.
Frequently Asked Questions
Q1: What is the maximum operating temperature range supported by the LPC1785FBD208557?
A1: The LPC1785FBD208557 supports operation from -40¡ãC to +105¡ãC, making it suitable for a wide range of environmental conditions.
Q2: Can the LPC1785FBD208557 be used in automotive applications?
A2: Yes, the LPC1785FBD208557 is certified to meet automotive safety standards, making it appropriate for automotive applications.
Q3: In which specific scenarios would you recommend using the LPC1785FBD208557?
A3: The LPC1785FBD208557 is recommended for scenarios requiring high performance, reliability, and energy efficiency, such as in automotive diagnostics, industrial automation, and consumer electronics.
