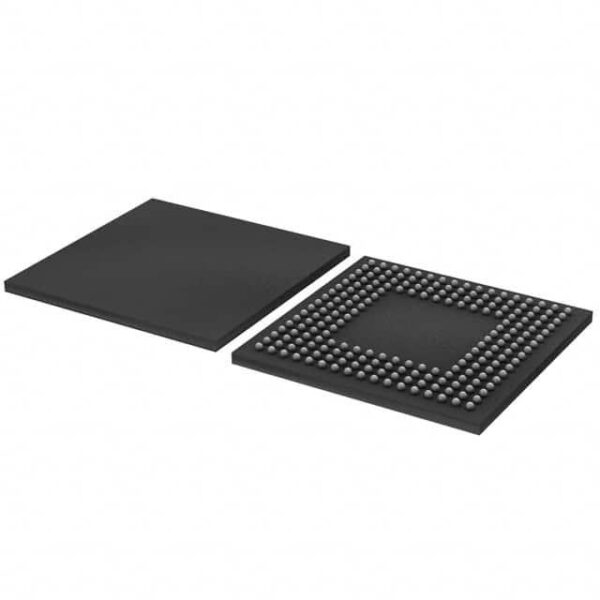

| Specification of LPC1778FET208K | |
|---|---|
| Status | Active |
| Series | LPC17xx |
| Package | Tray |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, IC, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, IS, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 165 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 96K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Data Converters | A/D 8x12b SAR; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 85C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 208-TFBGA |
| Supplier Device Package | 208-TFBGA (15×15) |
Applications
The LPC1778FET208K is versatile and suitable for various applications due to its robust performance and low power consumption. Here are some key areas where it excels:
- Industrial Automation: The LPC1778FET208K is ideal for embedded systems in industrial settings, offering reliable operation within a wide range of temperatures (-40¡ãC to +85¡ãC).
- Consumer Electronics: It powers many consumer devices efficiently, from smart home appliances to portable electronics.
- Automotive Systems: With its high reliability and safety features, it is used in automotive control units requiring precise timing and energy efficiency.
- Medical Devices: Its low-power capabilities make it suitable for medical equipment that needs long battery life without compromising on performance.
- IoT Applications: The LPC1778FET208K supports IoT devices effectively, providing secure and efficient connectivity solutions.
Key Advantages
- High Performance at Low Power: Operates efficiently even under high load conditions while maintaining low power consumption.
- Advanced Security Features: Includes hardware-based security mechanisms to protect against common cyber threats.
- Enhanced Processing Speed: Equipped with a powerful processor core capable of handling complex tasks quickly.
- Extended Operating Temperature Range: Functions optimally across a broad temperature spectrum, making it suitable for diverse environments.
- Compliance with Industry Standards: Meets stringent industry certifications ensuring interoperability and safety compliance.
Frequently Asked Questions
Q1: Can the LPC1778FET208K be used in high-temperature environments?
A1: Yes, the LPC1778FET208K operates reliably within a temperature range of -40¡ãC to +85¡ãC, making it suitable for high-temperature applications.
Q2: What are the power efficiency metrics of the LPC1778FET208K?
A2: The LPC1778FET208K achieves a typical power consumption of 60mA at 3.3V when running at maximum frequency, demonstrating excellent power efficiency.
Q3: In which specific scenarios does the LPC1778FET208K excel?
A3: The LPC1778FET208K excels in scenarios requiring both high performance and low power, such as in portable medical devices needing long battery life and in automotive systems demanding precise control.
