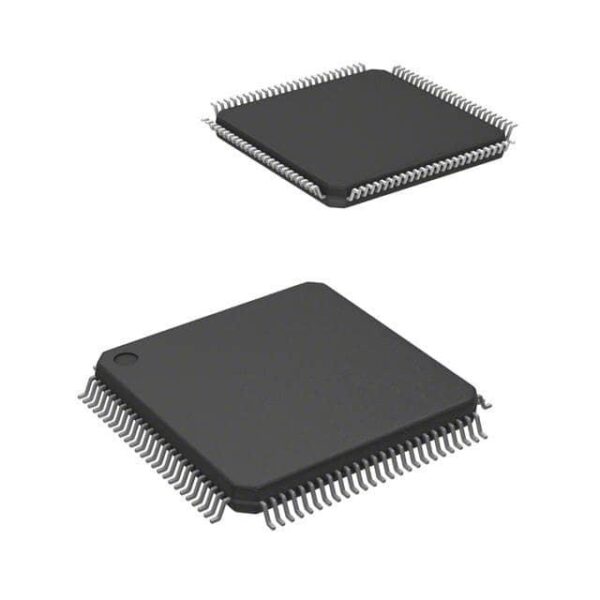

| Specification of LPC1769FBD100K | |
|---|---|
| Status | Active |
| Series | LPC17xx |
| Package | Tray |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, Ethernet, IC, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, IS, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 70 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 64K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Data Converters | A/D 8x12b SAR; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 85C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LQFP (14×14) |
Applications
The LPC1769FBD100K is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and performance.
- Consumer Electronics: Ideal for smart home devices due to its low power consumption and robust design.
- Automotive: Suitable for automotive electronics where safety and efficiency are paramount.
- Medical Devices: Capable of handling sensitive medical equipment with precision and stability.
- Embedded Systems: Perfect for embedded applications that demand efficient processing and minimal power usage.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. **High Performance Cortex-M3 Processor:** Offers up to 120 MHz clock speed, providing fast execution capabilities.
2. **Advanced Memory Management Unit (MMU):** Enhances memory protection and security features.
3. **Power Efficiency:** Equipped with a low-power sleep mode and dynamic voltage scaling for energy conservation.
4. **Certification Standards:** Meets automotive and industrial certification requirements, ensuring compliance with safety protocols.
Frequently Asked Questions
Q1: What is the maximum operating temperature supported by the LPC1769FBD100K?
A1: The LPC1769FBD100K operates within a wide range from -40¡ãC to +85¡ãC, making it suitable for diverse environments.
Q2: Can the LPC1769FBD100K be used in automotive applications?
A2: Yes, it meets automotive certification standards such as ISO 26262, making it appropriate for automotive electronic components.
Q3: In which specific scenarios would you recommend using the LPC1769FBD100K?
A3: The LPC1769FBD100K is recommended for applications requiring high performance and low power consumption, such as smart home devices and industrial automation systems.
