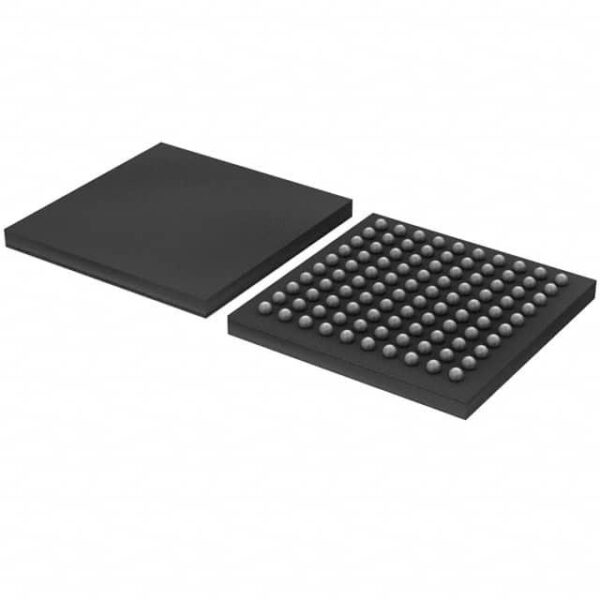

| Specification of LPC1768UKJ | |
|---|---|
| Status | Discontinued at Digi-Key |
| Series | LPC17xx |
| Package | Tape & Reel (TR),Cut Tape (CT),Digi-Reel? |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, Ethernet, IC, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, IS, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 70 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 64K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Data Converters | A/D 8x12b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 85C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-TFBGA |
| Supplier Device Package | 100-TFBGA (9×9) |
Applications
The LPC1768UKJ is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and performance.
- Consumer Electronics: Ideal for smart home devices due to its low power consumption and robust design.
- Automotive: Suitable for automotive electronics where safety and efficiency are paramount.
- Medical Devices: Capable of handling sensitive medical equipment with precise timing requirements.
- Embedded Systems: General-purpose microcontroller ideal for embedded applications needing flexibility and performance.
Operating Temperature: -40¡ãC to +105¡ãC
Key Advantages
1. **High Performance ARM Cortex-M3 Processor:** Offers up to 90 MHz processing speed.
2. **Advanced Memory Management Unit (MMU):** Enhances security and stability through virtual memory support.
3. **Power Efficiency:** Achieves up to 1.8 W at 90 MHz clock frequency.
4. **Certification Standards:** Meets automotive and industrial certification standards such as ISO 26262 and IEC 61508.
Frequently Asked Questions
Q1: What is the maximum operating temperature supported by the LPC1768UKJ?
A1: The LPC1768UKJ supports an operating temperature range from -40¡ãC to +105¡ãC.
Q2: Can the LPC1768UKJ be used in automotive applications?
A2: Yes, it meets automotive certification standards like ISO 26262, making it suitable for automotive applications.
Q3: In which specific scenarios can the LPC1768UKJ be utilized effectively?
A3: The LPC1768UKJ excels in scenarios requiring high reliability and performance, such as industrial automation, consumer electronics, automotive, and medical devices.
Other people’s search terms
– LPC1768UKJ applications
– LPC1768UKJ key features
– LPC1768UKJ specifications
– LPC1768UKJ in automotive
– LPC1768UKJ performance metrics
