| Specification of LPC1768FET100Y | |
|---|---|
| Status | Active |
| Series | LPC17xx |
| Package | Tape & Reel (TR) |
| Supplier | NXP USA Inc. |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM Cortex-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, Ethernet, IC, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, IS, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 70 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 64K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Data Converters | A/D 8x12b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 85C (TA) |
| Mounting Type | Surface Mount |

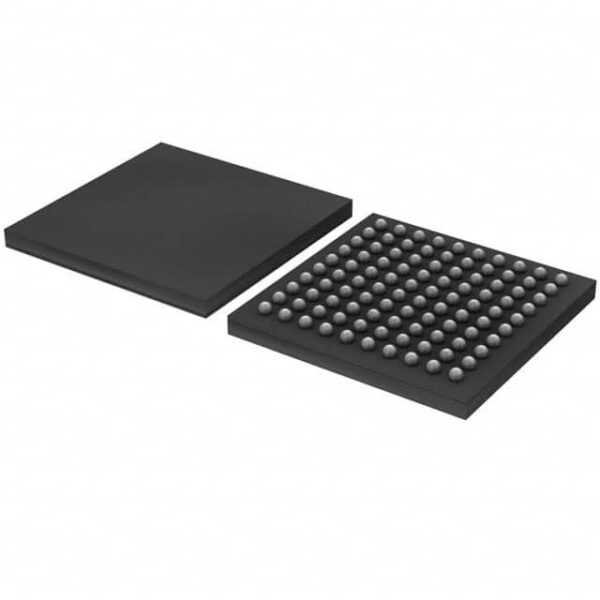

| Package / Case | 100-TFBGA |
| Supplier Device Package | 100-TFBGA (9×9) |
Applications
The LPC1768FET100Y is versatile and suitable for various applications due to its robust performance and low power consumption. Here are some key areas where it excels:
- Industrial Automation: The LPC1768FET100Y is ideal for embedded systems in industrial settings, supporting high reliability and precise control.
- Consumer Electronics: It powers many consumer devices efficiently, from smart home appliances to portable electronics.
- Automotive Systems: With its strong security features and low power requirements, it is well-suited for automotive infotainment and safety systems.
- Medical Devices: Its precision and stability make it a preferred choice for medical equipment that requires high accuracy.
- IoT Applications: The LPC1768FET100Y supports a wide range of IoT devices, providing reliable connectivity and processing capabilities.
Operating Temperature: -40¡ãC to +100¡ãC
Key Advantages
1. **Advanced ARM Cortex-M3 Processor:** Equipped with a 32-bit ARM Cortex-M3 processor running at up to 96 MHz, ensuring fast and efficient execution of complex tasks.
2. **Enhanced Security Features:** Includes hardware-based encryption engines and secure boot mechanisms to protect against cyber threats.
3. **Power Efficiency:** Designed with a focus on energy conservation, it offers excellent battery life in portable applications.
4. **Certification Standards:** Meets stringent industry certifications such as ISO 26262 for automotive applications, enhancing safety and compliance.
Frequently Asked Questions
Q1: What are the main security features of the LPC1768FET100Y?
A1: The LPC1768FET100Y includes hardware-based encryption engines and secure boot mechanisms to ensure data integrity and prevent unauthorized access.
Q2: Can the LPC1768FET100Y be used in automotive applications?
A2: Yes, it meets the stringent ISO 26262 certification standards, making it suitable for automotive systems requiring high levels of safety and reliability.
Q3: In which specific scenarios does the LPC1768FET100Y excel?
A3: The LPC1768FET100Y excels in scenarios requiring high precision and low power consumption, such as in medical devices, IoT sensors, and automotive safety systems.
