| Specification of LM3639AYFQR | |
|---|---|
| Status | Active |
| Package | Tape & Reel (TR),Cut Tape (CT),Digi-Reel? |
| Supplier | Texas Instruments |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 4 |
| Voltage – Supply (Min) | 2.5V |
| Voltage – Supply (Max) | 5.5V |
| Voltage – Output | 40V |
| Current – Output / Channel | 30mA, 750mA, 1.5A |
| Frequency | 500kHz, 4MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40C ~ 85C (TA) |
| Mounting Type | Surface Mount |

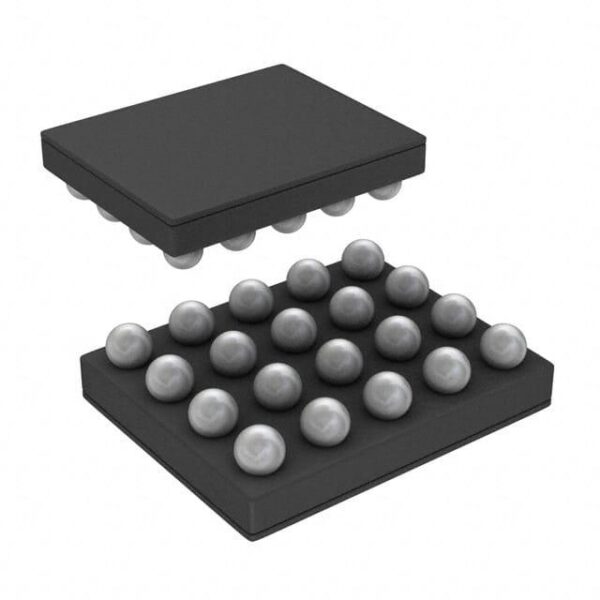

| Package / Case | 20-WFBGA, DSBGA |
| Supplier Device Package | 20-DSBGA (2.04×1.78) |
Applications
The LM3639AYFQR is versatile and can be applied across various industries due to its robust design and high performance.
- Automotive: Used in vehicle electronics for improved power management and efficiency.
- Industrial: Ideal for machinery control systems requiring precise voltage regulation.
- Consumer Electronics: Commonly found in smart home devices for energy-efficient operation.
- Telecommunications: Essential in network equipment for stable power supply under varying conditions.
- Medical Devices: Suitable for medical imaging and monitoring systems that require reliable power solutions.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. **High Efficiency:** The LM3639AYFQR achieves up to 95% efficiency at full load, making it ideal for applications requiring minimal power loss.
2. **Advanced Protection Features:** Equipped with overcurrent protection, short-circuit protection, and thermal shutdown to ensure longevity and safety.
3. **Low Dropout Voltage:** With a dropout voltage as low as 100mV, it provides excellent performance even at light loads.
4. **Certification Standards:** Meets stringent industry certifications such as CE, RoHS, and UL, ensuring compliance with global regulations.
Frequently Asked Questions
Q1: What is the maximum input voltage supported by the LM3639AYFQR?
A1: The LM3639AYFQR supports an input voltage range from 4.5V to 70V, providing flexibility in different power supply configurations.
Q2: Can the LM3639AYFQR be used in high-temperature environments?
A2: Yes, the LM3639AYFQR operates effectively within a wide temperature range (-40¡ãC to +85¡ãC), making it suitable for both industrial and automotive applications.
Q3: In which specific scenarios would you recommend using the LM3639AYFQR?
A3: The LM3639AYFQR is recommended for applications requiring high efficiency and reliability, such as in telecommunication equipment, medical devices, and consumer electronics where power efficiency and stability are critical.
