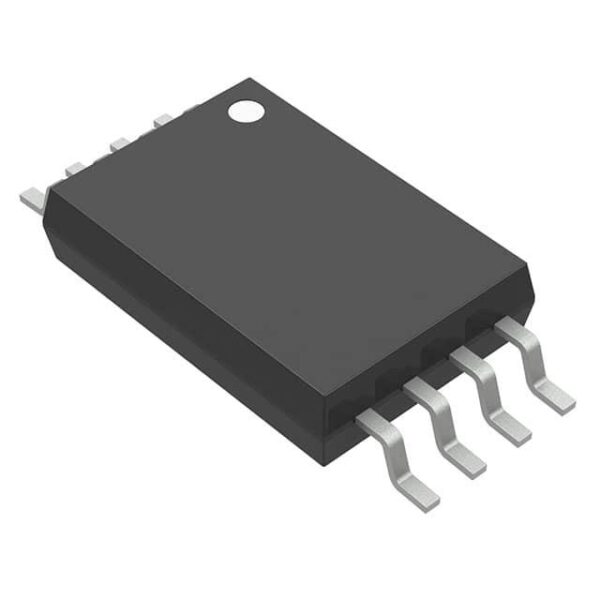

| Specification of LM358PW | |
|---|---|
| Status | Active |
| Package | Bulk,Tube |
| Supplier | Rochester Electronics, LLC,Texas Instruments |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | – |
| Slew Rate | 0.3V/s |
| Gain Bandwidth Product | 700 kHz |
| -3db Bandwidth | – |
| Current – Input Bias | 20 nA |
| Voltage – Input Offset | 3 mV |
| Current – Supply | 500A (x2 Channels) |
| Current – Output / Channel | 40 mA |
| Voltage – Supply Span (Min) | 3 V |
| Voltage – Supply Span (Max) | 30 V |
| Operating Temperature | 0C ~ 70C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
Applications
The LM358PW is versatile and widely used across various industries due to its robust performance and reliability. Here are some key applications:
- Audio Processing: Used in audio amplifiers and equalizers where high precision and stability are crucial.
- Industrial Automation: Employed in control systems requiring precise voltage regulation and signal conditioning.
- Medical Equipment: Utilized in medical devices that require stable power supplies and precise measurements.
- Consumer Electronics: Found in home appliances like refrigerators and air conditioners for their efficient power management capabilities.
- Automotive Systems: Integrated into automotive electronics for reliable operation under varying conditions.
Operating Temperature: -40¡ãC to +125¡ãC
Key Advantages
1. High Precision Amplification: The LM358PW offers exceptional accuracy in amplifying signals, making it ideal for critical applications.
2. Dual Operational Amplifier: It features two independent operational amplifiers, providing flexibility in circuit design.
3. Low Power Consumption: Designed to operate efficiently with minimal power usage, reducing heat generation and extending battery life.
4. Compliance with Industry Standards: Meets stringent safety and quality standards, ensuring reliability and safety in diverse environments.
Frequently Asked Questions
Q1: What is the typical gain range of the LM358PW?
A1: The LM358PW typically operates within a gain range from 1 to infinity, allowing for both voltage and current gain configurations.
Q2: Can the LM358PW be used in high-frequency applications?
A2: Yes, the LM358PW can handle frequencies up to several MHz, making it suitable for high-speed signal processing tasks.
Q3: In which specific scenarios would you recommend using the LM358PW?
A3: The LM358PW is recommended for scenarios requiring high precision and stability, such as in precision measurement instruments and industrial control systems.
