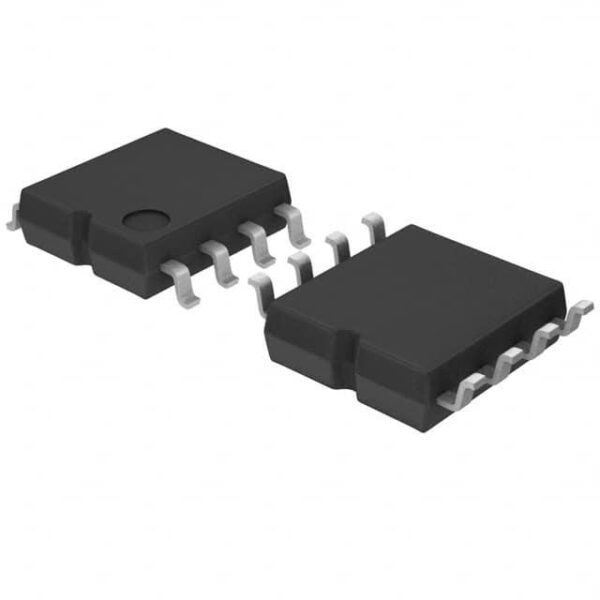

| Specification of LM358F-E2 | |
|---|---|
| Status | Active |
| Package | Tape & Reel (TR) |
| Supplier | Rohm Semiconductor |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | – |
| Slew Rate | 0.3V/s |
| Gain Bandwidth Product | 800 kHz |
| -3db Bandwidth | – |
| Current – Input Bias | 20 nA |
| Voltage – Input Offset | 1 mV |
| Current – Supply | 600A |
| Current – Output / Channel | 30 mA |
| Voltage – Supply Span (Min) | 3 V |
| Voltage – Supply Span (Max) | 32 V |
| Operating Temperature | -40C ~ 85C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.173″, 4.40mm Width) |
| Supplier Device Package | 8-SOP |
Applications
The LM358F-E2 is versatile and can be applied across various industries due to its robust performance and reliability.
- Medical Devices: Utilized in patient monitoring systems where precise measurements are crucial.
- Automotive Electronics: Employed in vehicle diagnostics and control systems requiring high accuracy.
- Industrial Automation: Used in process control systems that demand stable and reliable operation.
- Consumer Electronics: Found in home appliances like refrigerators and air conditioners for temperature sensing.
- Scientific Instruments: Applied in laboratory equipment for precise measurement tasks.
Operating Temperature: -40¡ãC to +125¡ãC
Key Advantages
1. High Precision Amplifier: Offers ¡À0.07% typical accuracy over the specified temperature range.
2. Dual Operational Amplifier: Provides two independent amplifiers in one package, saving space and reducing costs.
3. Low Power Consumption: Consumes only 6.5mA per channel at room temperature, making it energy-efficient.
4. Wide Operating Voltage Range: Operates from 2.7V to 36V, suitable for a wide variety of power supply configurations.
Frequently Asked Questions
Q1: What is the typical accuracy of the LM358F-E2?
A1: The typical accuracy of the LM358F-E2 is ¡À0.07% over the operating temperature range of -40¡ãC to +125¡ãC.
Q2: Can the LM358F-E2 be used in automotive applications?
A2: Yes, the LM358F-E2 is suitable for automotive electronics due to its high precision and reliability.
Q3: In which specific scenarios would you recommend using the LM358F-E2?
A3: The LM358F-E2 is recommended for scenarios requiring high precision and stability, such as medical devices, industrial automation, and scientific instruments.
