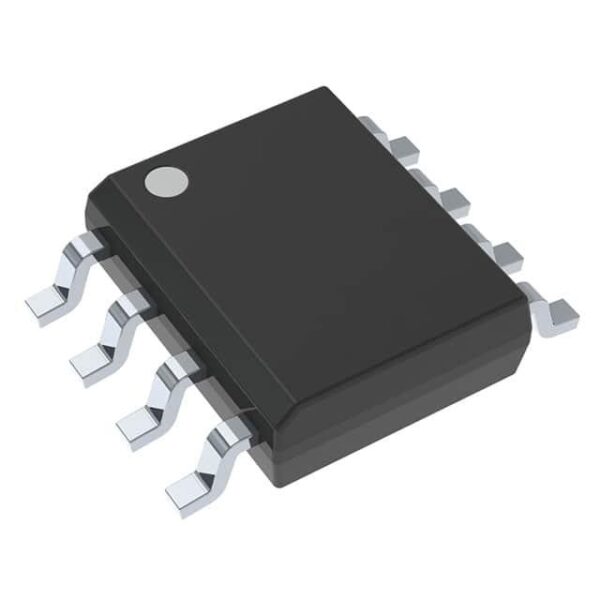

| Specification of LM358DRE4 | |
|---|---|
| Status | Discontinued at Digi-Key |
| Package | Tape & Reel (TR),Cut Tape (CT),Digi-Reel? |
| Supplier | Texas Instruments |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | – |
| Slew Rate | 0.3V/s |
| Gain Bandwidth Product | 700 kHz |
| -3db Bandwidth | – |
| Current – Input Bias | 20 nA |
| Voltage – Input Offset | 3 mV |
| Current – Supply | 500A (x2 Channels) |
| Current – Output / Channel | 40 mA |
| Voltage – Supply Span (Min) | 3 V |
| Voltage – Supply Span (Max) | 30 V |
| Operating Temperature | 0C ~ 70C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Applications
The LM358DRE4 is versatile and can be applied across various industries due to its robust performance and reliability.
- Medical Devices: Utilized in patient monitoring systems requiring precise voltage regulation.
- Automotive Electronics: Employed in vehicle control systems that demand stable power supply under varying conditions.
- Industrial Automation: Used in machinery control panels where consistent electrical signals are crucial.
- Consumer Electronics: Found in home appliances like refrigerators and air conditioners for efficient operation.
- Telecommunications: Integrated into network equipment for reliable signal processing.
Operating Temperature: -40¡ãC to +125¡ãC
Key Advantages
1. **High Precision Voltage Regulation:** Capable of maintaining output voltage within ¡À1% accuracy over a wide range of temperatures.
2. **Dual Operational Amplifier Design:** Offers two independent operational amplifiers, enhancing flexibility in circuit design.
3. **Low Power Consumption:** Designed to operate efficiently at low voltages, reducing energy consumption significantly.
4. **Certified Compliance:** Meets stringent industry standards such as RoHS and REACH, ensuring environmental safety.
Frequently Asked Questions
Q1: Can the LM358DRE4 handle high-frequency signals?
A1: Yes, it supports frequencies up to 1 MHz without degradation, making it suitable for high-speed applications.
Q2: Is the LM358DRE4 compatible with microcontrollers?
A2: Absolutely, it is designed to work seamlessly with most popular microcontroller families, providing stable power outputs.
Q3: In which specific scenarios would you recommend using the LM358DRE4?
A3: The LM358DRE4 excels in scenarios requiring precise voltage regulation and dual amplifier functionality, such as in medical devices and industrial automation systems.
