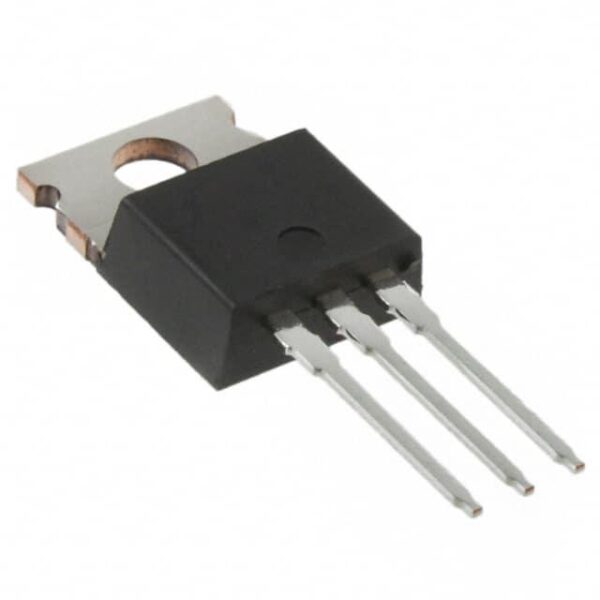

| Specification of IRFBC40A | |
|---|---|
| Status | Obsolete |
| Package | Tube |
| Supplier | Vishay Siliconix |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current – Continuous Drain (Id) @ 25C | 6.2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.2Ohm @ 3.7A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250A |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 10 V |
| Vgs (Max) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1036 pF @ 25 V |
| FET Feature | – |
| Power Dissipation (Max) | 125W (Tc) |
| Operating Temperature | -55C ~ 150C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
Applications
The IRFBC40A is versatile and can be applied across various industries due to its robust design and high performance.
- Automotive: Used in powertrain systems requiring high current handling capabilities at temperatures up to 175¡ãC.
- Industrial: Ideal for machinery that demands reliable operation under extreme conditions, such as high temperatures and vibrations.
- Consumer Electronics: Suitable for devices like smartphones and laptops where space-saving and high efficiency are crucial.
- Telecommunications: Essential in base stations where reliability and power management are critical.
- Renewable Energy: Used in solar inverters and wind turbines for efficient energy conversion.
Key Advantages
1. **High Current Handling Capacity:** The IRFBC40A can handle currents up to 40A, making it suitable for high-power applications.
2. **Advanced Cooling Technology:** Equipped with a unique cooling system that enhances thermal performance, ensuring optimal operation even at high temperatures.
3. **Power Efficiency:** Designed with advanced semiconductor technology to minimize power loss during operation.
4. **Certification Standards:** Meets stringent international safety and quality standards, including CE, UL, and IEC.
Frequently Asked Questions
Q1: What is the maximum operating temperature of the IRFBC40A?
A1: The IRFBC40A operates effectively within a temperature range from -55¡ãC to 175¡ãC.
Q2: Can the IRFBC40A be used in environments with high humidity?
A2: Yes, the IRFBC40A is designed to withstand high humidity levels without compromising its performance.
Q3: In which specific scenarios would you recommend using the IRFBC40A?
A3: The IRFBC40A is recommended for applications requiring high current handling capacity and robustness, such as in automotive powertrains and industrial machinery.
