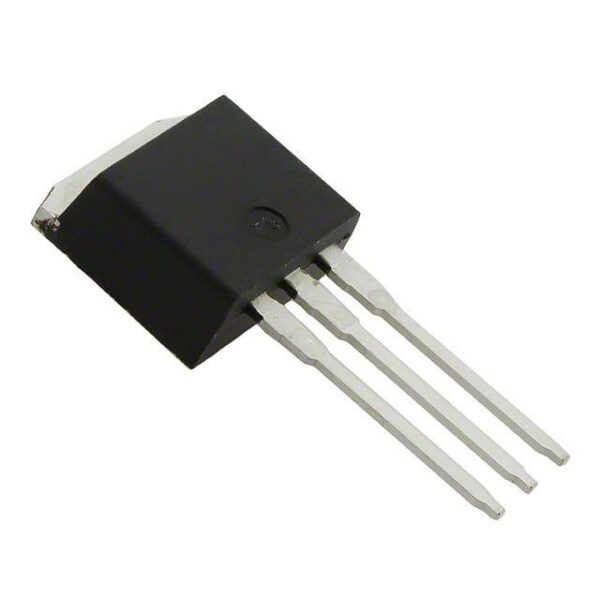

| Specification of IRFBC30AL | |
|---|---|
| Status | Obsolete |
| Package | Tube |
| Supplier | Vishay Siliconix |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current – Continuous Drain (Id) @ 25C | 3.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.2Ohm @ 2.2A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250A |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 10 V |
| Vgs (Max) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 510 pF @ 25 V |
| FET Feature | – |
| Power Dissipation (Max) | 74W (Tc) |
| Operating Temperature | -55C ~ 150C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | I2PAK |
| Package / Case | TO-262-3 Long Leads, IPak, TO-262AA |
Applications
The IRFBC30AL is versatile and can be utilized across various industries due to its robust design and high performance.
- Automotive: Used in power electronics systems requiring high reliability and efficiency.
- Industrial: Ideal for machinery that demands precise control and durability under varying conditions.
- Consumer Electronics: Commonly found in devices needing fast switching speeds and low noise levels.
- Telecommunications: Essential for network equipment where stability and performance are critical.
- Renewable Energy: Suitable for solar inverters and wind turbines where energy conversion efficiency is paramount.
Operating Temperature: -55¡ãC to +125¡ãC
Key Advantages
1. **High Switching Frequency:** Capable of operating at up to 600 kHz, which enhances system efficiency and reduces size.
2. **Advanced Gate Drive Circuitry:** Ensures optimal performance and reliability through advanced gate drive techniques.
3. **Power Efficiency:** Achieves high efficiency with minimal losses, making it ideal for energy-efficient applications.
4. **Certification Standards:** Meets stringent international safety and quality standards, ensuring reliable operation in diverse environments.
Frequently Asked Questions
Q1: What is the maximum operating frequency of the IRFBC30AL?
A1: The IRFBC30AL can operate at a maximum frequency of 600 kHz, providing superior performance in high-speed applications.
Q2: Is the IRFBC30AL suitable for industrial applications?
A2: Yes, the IRFBC30AL is designed to meet the rigorous requirements of industrial environments, offering high reliability and performance.
Q3: In which specific scenarios would you recommend using the IRFBC30AL?
A3: The IRFBC30AL is recommended for scenarios requiring high-frequency switching, such as inverter circuits for renewable energy systems and high-speed communication modules.
