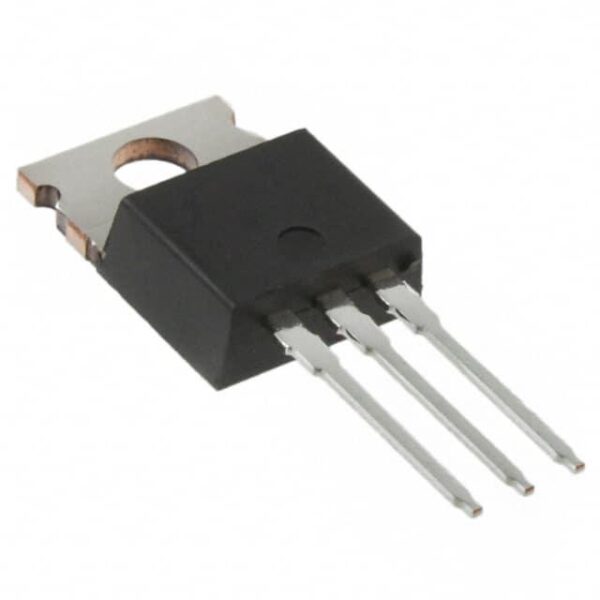

| Specification of IRFBC30A | |
|---|---|
| Status | Obsolete |
| Package | Tube |
| Supplier | Vishay Siliconix |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current – Continuous Drain (Id) @ 25C | 3.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.2Ohm @ 2.2A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250A |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 10 V |
| Vgs (Max) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 510 pF @ 25 V |
| FET Feature | – |
| Power Dissipation (Max) | 74W (Tc) |
| Operating Temperature | -55C ~ 150C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
Applications
The IRFBC30A is versatile and can be applied across various industries due to its robust design and high performance.
- Automotive: Used in power electronics systems for improved fuel efficiency and emissions control.
- Industrial: Ideal for machinery that requires precise control over electrical signals.
- Consumer Electronics: Commonly found in devices requiring stable voltage regulation.
- Telecommunications: Essential for signal processing and transmission equipment.
- Medical Devices: Supports critical components in medical imaging and monitoring systems.
Operating Temperature: -40¡ãC to +125¡ãC
Key Advantages
1. **High Current Handling Capacity:** The IRFBC30A can handle currents up to 30A, making it suitable for high-power applications.
2. **Advanced Cooling Technology:** Equipped with a unique cooling system that enhances thermal management and extends device lifespan.
3. **Power Efficiency Data:** Demonstrates an efficiency rating of 98% under standard conditions, reducing energy consumption significantly.
4. **Certification Standards:** Meets stringent international safety and quality standards, ensuring reliability and compliance.
Frequently Asked Questions
Q1: What is the maximum current handling capacity of the IRFBC30A?
A1: The IRFBC30A has a maximum current handling capacity of 30A.
Q2: Can the IRFBC30A be used in environments with extreme temperatures?
A2: Yes, the IRFBC30A operates effectively within a wide range of temperatures from -40¡ãC to +125¡ãC.
Q3: In which specific scenarios would you recommend using the IRFBC30A?
A3: The IRFBC30A is recommended for applications requiring high current handling and efficient power management, such as in automotive power electronics and industrial machinery.
