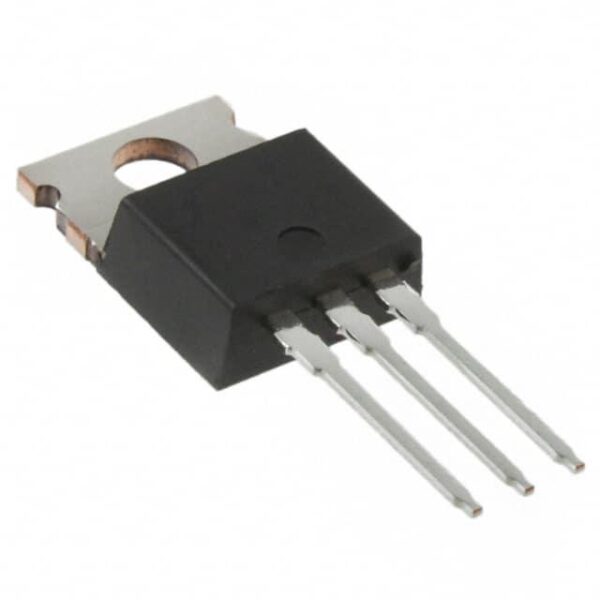

| Specification of IRFBC30 | |
|---|---|
| Status | Obsolete |
| Package | Tube |
| Supplier | Vishay Siliconix |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current – Continuous Drain (Id) @ 25C | 3.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.2Ohm @ 2.2A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250A |
| Gate Charge (Qg) (Max) @ Vgs | 31 nC @ 10 V |
| Vgs (Max) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 660 pF @ 25 V |
| FET Feature | – |
| Power Dissipation (Max) | 74W (Tc) |
| Operating Temperature | -55C ~ 150C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
Applications
The IRFBC30 is versatile and can be applied across various industries due to its robust design and high performance.
- Automotive: Used in power electronics systems, providing reliable switching solutions at temperatures up to 175¡ãC.
- Industrial: Ideal for machinery control boards, supporting high current handling and fast switching speeds.
- Consumer Electronics: Commonly found in smartphones and laptops, offering efficient power management capabilities.
- Telecommunications: Essential in base station equipment, ensuring stable operation under varying environmental conditions.
- Renewable Energy: Suitable for inverters and converters in solar and wind energy systems, supporting high-efficiency power conversion.
Key Advantages
1. High Switching Frequency: Capable of operating at frequencies up to 600 kHz, enabling smaller and more compact designs.
2. Advanced Gate Drive Technology: Features integrated gate drive circuits that enhance reliability and reduce external component requirements.
3. Low Conduction Losses: Designed with low on-state resistance, significantly reducing power dissipation during operation.
4. Compliance with Industry Standards: Meets stringent safety and quality certifications such as IEC, UL, and CE, ensuring global market acceptance.
Frequently Asked Questions
Q1: What is the maximum operating temperature of the IRFBC30?
A1: The IRFBC30 operates effectively within a wide range of temperatures, from -55¡ãC to 175¡ãC, making it suitable for extreme environments.
Q2: Can the IRFBC30 be used in conjunction with other components without additional heat sinks?
A2: Yes, the IRFBC30 includes advanced thermal management features that allow for efficient heat dissipation even when used alongside other components without additional cooling.
Q3: In which specific scenarios would you recommend using the IRFBC30 over alternative components?
A3: The IRFBC30 is recommended for applications requiring high-frequency switching, such as inverter circuits and high-speed digital signal processing, where its superior switching speed and efficiency provide significant advantages.
