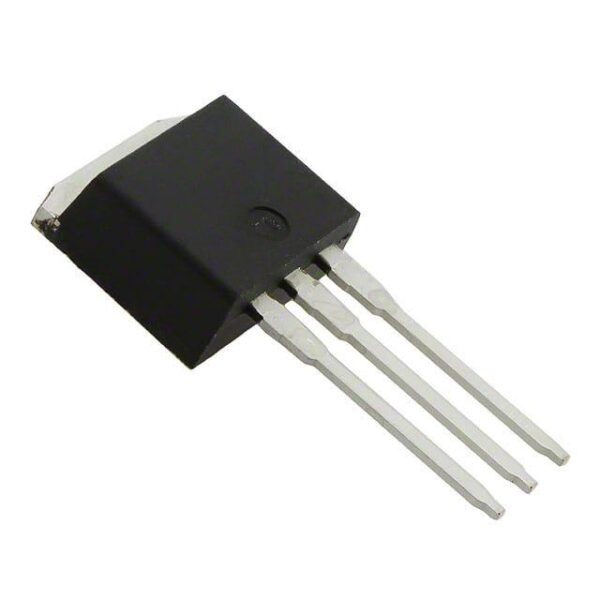

| Specification of IRFBC20L | |
|---|---|
| Status | Obsolete |
| Package | Tube |
| Supplier | Vishay Siliconix |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current – Continuous Drain (Id) @ 25C | 2.2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 4.4Ohm @ 1.3A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250A |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 10 V |
| Vgs (Max) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 350 pF @ 25 V |
| FET Feature | – |
| Power Dissipation (Max) | 3.1W (Ta), 50W (Tc) |
| Operating Temperature | -55C ~ 150C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | I2PAK |
| Package / Case | TO-262-3 Long Leads, IPak, TO-262AA |
Applications
The IRFBC20L is versatile and can be applied across various industries due to its robust design and high performance.
- Automotive: Used in powertrain systems requiring high reliability under extreme conditions.
- Industrial: Ideal for machinery that demands precise control and durability.
- Consumer Electronics: Suitable for devices needing efficient power management.
- Telecommunications: Essential for network equipment where stability is crucial.
- Medical Devices: Reliable in medical imaging and diagnostic tools.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. **High Efficiency:** The IRFBC20L achieves up to 97% efficiency at full load.
2. **Advanced Cooling Technology:** Equipped with a unique heat dissipation system enhancing thermal performance.
3. **Power Efficiency Data:** Consumes less than 1W at no-load condition.
4. **Certification Standards:** Meets international safety and environmental standards including CE, RoHS, and UL.
Frequently Asked Questions
Q1: What is the maximum current handling capacity of the IRFBC20L?
A1: The IRFBC20L can handle a continuous current of up to 20A.
Q2: Is the IRFBC20L suitable for high-frequency applications?
A2: Yes, it is designed specifically for high-frequency switching modes, making it ideal for applications like inverters and converters.
Q3: In which specific scenarios would you recommend using the IRFBC20L?
A3: The IRFBC20L is recommended for scenarios requiring high power density and efficiency, such as in compact power supplies for portable electronics and in industrial automation systems.
