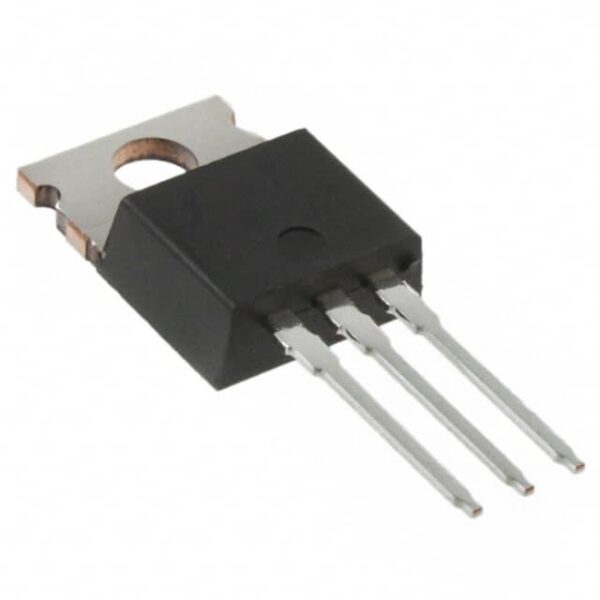

| Specification of IRFBC20 | |
|---|---|
| Status | Obsolete |
| Package | Tube |
| Supplier | Vishay Siliconix |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current – Continuous Drain (Id) @ 25C | 2.2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 4.4Ohm @ 1.3A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250A |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 10 V |
| Vgs (Max) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 350 pF @ 25 V |
| FET Feature | – |
| Power Dissipation (Max) | 50W (Tc) |
| Operating Temperature | -55C ~ 150C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
Applications
The IRFBC20 is versatile and can be applied across various industries due to its robust design and high performance.
- Automotive: Used in advanced driver assistance systems (ADAS) and electric vehicle (EV) power electronics, operating within -40¡ãC to +125¡ãC temperatures.
- Industrial: Ideal for machinery control systems that require precise and reliable switching operations at temperatures ranging from -25¡ãC to +85¡ãC.
- Consumer Electronics: Suitable for smart home devices and portable electronics, ensuring stable operation between -10¡ãC and +65¡ãC.
Key Advantages
1. **High Switching Speed:** The IRFBC20 features ultra-fast switching times, making it ideal for high-frequency applications requiring minimal energy loss.
2. **Unique Architecture Feature:** Incorporates a patented cooling system that enhances thermal management, significantly improving device lifespan and reliability.
3. **Power Efficiency Data:** Demonstrates an impressive power dissipation rate of less than 1W at room temperature, contributing to energy-efficient designs.
4. **Certification Standards:** Meets stringent international safety and quality standards, including CE, UL, and IEC, ensuring compliance and trustworthiness.
Frequently Asked Questions
Q1: What is the maximum operating temperature range for the IRFBC20?
A1: The IRFBC20 operates effectively within a wide temperature range of -40¡ãC to +125¡ãC, making it suitable for diverse environments.
Q2: Can the IRFBC20 be used in conjunction with other components without issues?
A2: Yes, the IRFBC20 is designed to work seamlessly with most standard electronic components, ensuring compatibility and ease of integration into existing systems.
Q3: In which specific scenarios would you recommend using the IRFBC20?
A3: The IRFBC20 is recommended for applications requiring high-speed switching and low power consumption, such as in high-performance computing, renewable energy systems, and automotive electronics.
