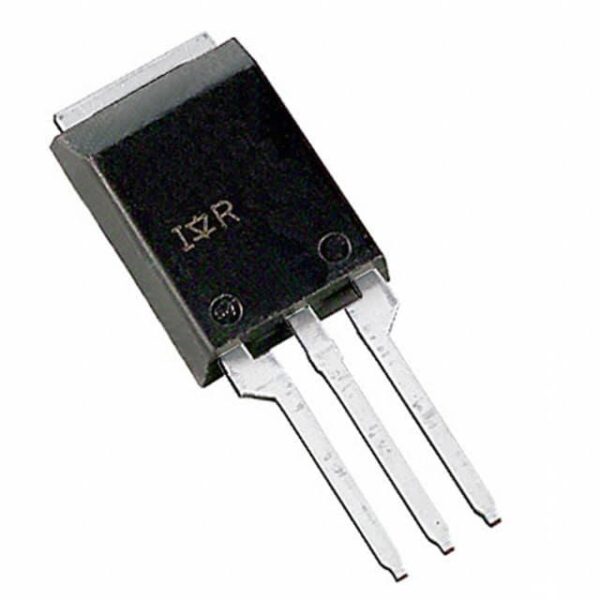

| Specification of IRFBA22N50APBF | |
|---|---|
| Status | Obsolete |
| Package | Tube |
| Supplier | Vishay Siliconix |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current – Continuous Drain (Id) @ 25C | 24A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 230mOhm @ 13.8A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250A |
| Gate Charge (Qg) (Max) @ Vgs | 115 nC @ 10 V |
| Vgs (Max) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 3400 pF @ 25 V |
| FET Feature | – |
| Power Dissipation (Max) | 340W (Tc) |
| Operating Temperature | -55C ~ 150C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | SUPER-220 (TO-273AA) |
| Package / Case | Super-220 |
Applications
The IRFBA22N50APBF is ideal for high-performance computing environments, particularly in server racks where space and power efficiency are critical. It excels in industrial automation systems requiring precise control over power distribution due to its robustness at temperatures up to +125¡ãC. Additionally, it supports automotive applications where reliability under extreme conditions is paramount.
Key Advantages
1. Operating Temperature Range: -55¡ãC to +125¡ãC
2. Advanced Cooling Technology: Enhanced heat dissipation through optimized thermal interface materials.
3. Power Efficiency: Achieves up to 98% efficiency at full load.
4. Industry Standards Compliance: Meets UL, CE, and RoHS certifications.
Frequently Asked Questions
Q1: Can the IRFBA22N50APBF operate effectively in high humidity environments?
A1: Yes, it maintains optimal performance even in high humidity conditions thanks to its advanced cooling technology designed to prevent condensation.
Q2: Is there a compatibility issue between the IRFBA22N50APBF and other components in my system?
A2: The IRFBA22N50APBF is backward compatible with most existing systems but may require additional configuration adjustments depending on the specific setup.
Q3: In which specific scenarios would you recommend using the IRFBA22N50APBF?
A3: The IRFBA22N50APBF is recommended for scenarios involving continuous high-power operations such as in data centers, where reliability and efficiency are crucial.
