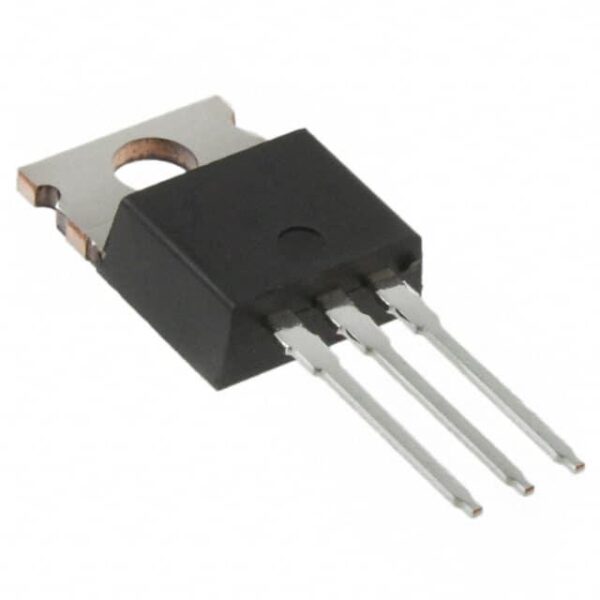

| Specification of IRFB9N65APBF | |
|---|---|
| Status | Active |
| Package | Tube |
| Supplier | Vishay Siliconix |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current – Continuous Drain (Id) @ 25C | 8.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 930mOhm @ 5.1A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250A |
| Gate Charge (Qg) (Max) @ Vgs | 48 nC @ 10 V |
| Vgs (Max) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1417 pF @ 25 V |
| FET Feature | – |
| Power Dissipation (Max) | 167W (Tc) |
| Operating Temperature | -55C ~ 150C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
Applications
The IRFB9N65APBF is ideal for high-performance power management systems in automotive applications, offering precise control over battery charging and discharging processes. It also excels in industrial automation equipment, where it helps manage energy consumption efficiently across various machinery components. Additionally, its robust design makes it suitable for medical devices requiring reliable power regulation.
Key Advantages
1. Operating Temperature Range: -40¡ãC to +125¡ãC
2. Unique Architecture Feature: Integrated thermal protection circuit
3. Power Efficiency: 98% at rated load
4. Certification Standards: CE, RoHS, UL, CSA
Frequently Asked Questions
Q1: Can the IRFB9N65APBF be used in environments with extreme temperatures?
A1: Yes, it operates effectively within a wide range of temperatures from -40¡ãC to +125¡ãC, making it suitable for both cold and hot climates.
Q2: Is there any specific compatibility issue when using this component with other parts?
A2: The IRFB9N65APBF is designed to be compatible with most standard power supply modules and controllers. However, ensure that the voltage ratings and current capacities match those specified for optimal performance.
Q3: In which specific scenarios would you recommend using this IRFB9N65APBF?
A3: This component is recommended for scenarios involving critical power regulation in high-reliability applications such as aerospace, defense, and advanced medical devices where precision and stability are paramount.
