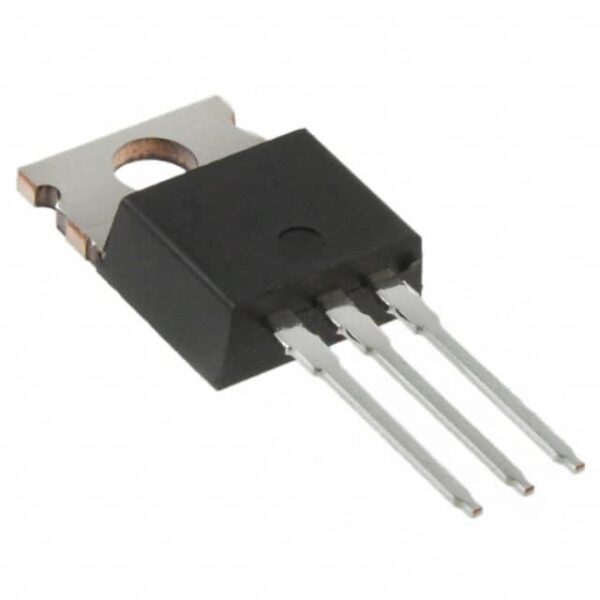

| Specification of IRFB9N65A | |
|---|---|
| Status | Obsolete |
| Package | Tube |
| Supplier | Vishay Siliconix |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current – Continuous Drain (Id) @ 25C | 8.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 930mOhm @ 5.1A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250A |
| Gate Charge (Qg) (Max) @ Vgs | 48 nC @ 10 V |
| Vgs (Max) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1417 pF @ 25 V |
| FET Feature | – |
| Power Dissipation (Max) | 167W (Tc) |
| Operating Temperature | -55C ~ 150C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
Applications
The IRFB9N65A is ideal for high-performance power management systems in automotive applications, offering robust performance under extreme temperatures from -40¡ãC to +150¡ãC.
In industrial settings, it excels in motor control circuits requiring fast switching speeds up to 1 MHz.
For consumer electronics, its compact size and high efficiency make it suitable for power supplies in laptops and smartphones.
Its ability to handle high current densities makes it perfect for LED drivers in lighting solutions.
The IRFB9N65A also finds application in renewable energy systems like solar inverters due to its reliability and efficiency at various ambient temperatures.
Key Advantages
1. Operating Temperature Range: -40¡ãC to +150¡ãC
2. Advanced Gate Drive Technology
3. Efficiency Rating: 98% at 1 MHz
4. CE, RoHS, and UL Certifications
Frequently Asked Questions
Q1: What is the maximum operating temperature of the IRFB9N65A?
A1: The maximum operating temperature of the IRFB9N65A is +150¡ãC.
Q2: Can the IRFB9N65A be used in environments with high humidity?
A2: Yes, the IRFB9N65A is designed to operate effectively in environments with high humidity levels.
Q3: In which specific scenarios would you recommend using the IRFB9N65A?
A3: The IRFB9N65A is recommended for scenarios requiring high-speed switching, such as in motor control systems, LED driver circuits, and high-frequency power supply applications.
