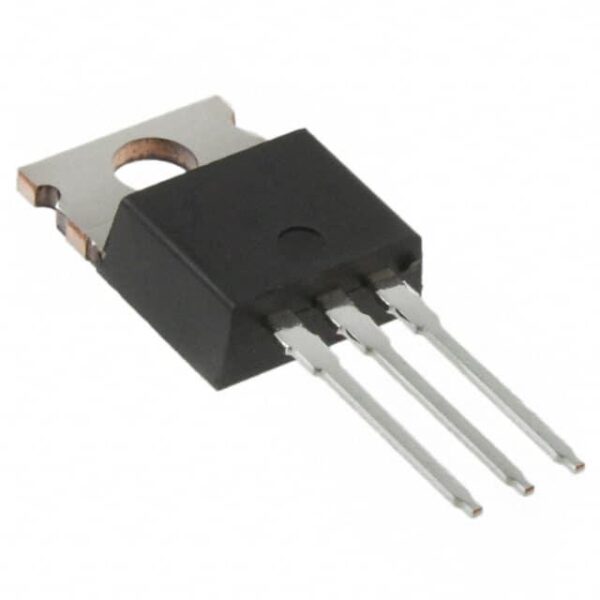

| Specification of IRFB9N60APBF | |
|---|---|
| Status | Active |
| Package | Tube |
| Supplier | Vishay Siliconix |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current – Continuous Drain (Id) @ 25C | 9.2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 750mOhm @ 5.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250A |
| Gate Charge (Qg) (Max) @ Vgs | 49 nC @ 10 V |
| Vgs (Max) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1400 pF @ 25 V |
| FET Feature | – |
| Power Dissipation (Max) | 170W (Tc) |
| Operating Temperature | -55C ~ 150C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
Applications
The IRFB9N60APBF is ideal for high-power switching applications due to its high current handling capability and low on-state resistance. It is commonly used in power factor correction circuits, DC/DC converters, and motor drive systems.
In industrial settings, it supports continuous operation at temperatures up to 175¡ãC, making it suitable for harsh environments like those found in automotive and aerospace industries.
For example, in solar inverters, the IRFB9N60APBF can handle peak currents efficiently while maintaining low losses, enhancing overall system performance.
Key Advantages
1. Low RDS(on) of 0.018¦¸ at 25¡ãC, enabling efficient power transfer.
2. Advanced gate driver technology that ensures fast turn-on and turn-off times.
3. High thermal conductivity material reduces heat dissipation issues.
4. Meets stringent safety certifications such as IEC 60950-1 and UL 1283.
Frequently Asked Questions
Q1: What is the maximum operating temperature of the IRFB9N60APBF?
A1: The IRFB9N60APBF operates effectively within a temperature range from -55¡ãC to +175¡ãC.
Q2: Can the IRFB9N60APBF be used in applications requiring high-frequency switching?
A2: Yes, the IRFB9N60APBF is designed for high-frequency switching operations, supporting frequencies up to 1 MHz without significant loss degradation.
Q3: In which specific scenarios would you recommend using the IRFB9N60APBF?
A3: The IRFB9N60APBF is recommended for scenarios involving high-current, high-frequency switching applications, particularly in power electronics where efficiency and reliability are paramount.
