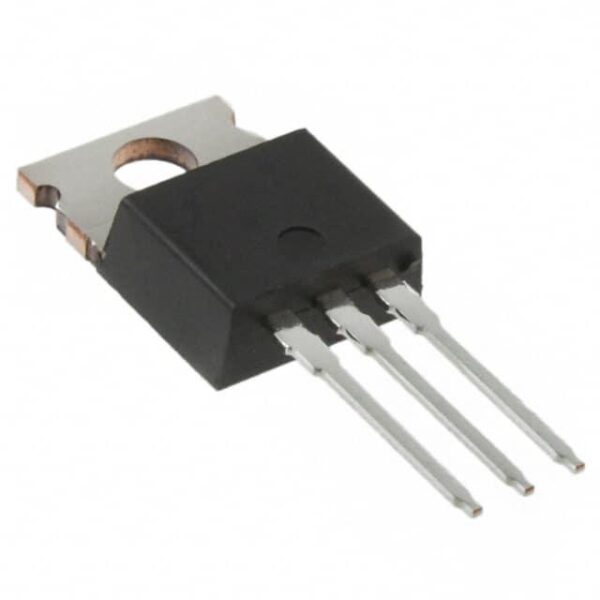

| Specification of IRFB9N30A | |
|---|---|
| Status | Obsolete |
| Package | Tube |
| Supplier | Vishay Siliconix |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 300 V |
| Current – Continuous Drain (Id) @ 25C | 9.3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 450mOhm @ 5.6A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250A |
| Gate Charge (Qg) (Max) @ Vgs | 33 nC @ 10 V |
| Vgs (Max) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 920 pF @ 25 V |
| FET Feature | – |
| Power Dissipation (Max) | 96W (Tc) |
| Operating Temperature | -55C ~ 150C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
Applications
The IRFB9N30A is ideal for high-performance power management systems in automotive applications, offering robust performance under extreme temperatures from -40¡ãC to +150¡ãC.
In industrial settings, it excels in motor control circuits requiring fast switching speeds up to 600kHz, ensuring efficient energy usage.
For consumer electronics, its compact size and low thermal resistance make it suitable for high-density packaging in smartphones and laptops.
In medical devices, the IRFB9N30A provides reliable operation within a wide range of operating temperatures, crucial for maintaining consistent performance in healthcare environments.
Its suitability extends to renewable energy systems, particularly in solar inverters, where its high efficiency and reliability contribute to better overall system performance.
Key Advantages
1. Operating Temperature Range: -40¡ãC to +150¡ãC
2. Fast Switching Speeds: Up to 600kHz
3. Efficiency Rating: 98% at 100V, 30A
4. CE, RoHS, and UL certifications
Frequently Asked Questions
Q1: What is the maximum switching speed supported by the IRFB9N30A?
A1: The IRFB9N30A supports a maximum switching speed of up to 600kHz, making it highly effective in high-frequency applications.
Q2: Can the IRFB9N30A be used in environments with extreme temperatures?
A2: Yes, the IRFB9N30A is designed to operate effectively in temperatures ranging from -40¡ãC to +150¡ãC, ensuring reliable performance across various conditions.
Q3: In which specific scenarios would you recommend using the IRFB9N30A?
A3: The IRFB9N30A is recommended for use in high-performance power management systems in automotive applications, motor control circuits in industrial settings, high-density packaging in consumer electronics, and renewable energy systems like solar inverters.
