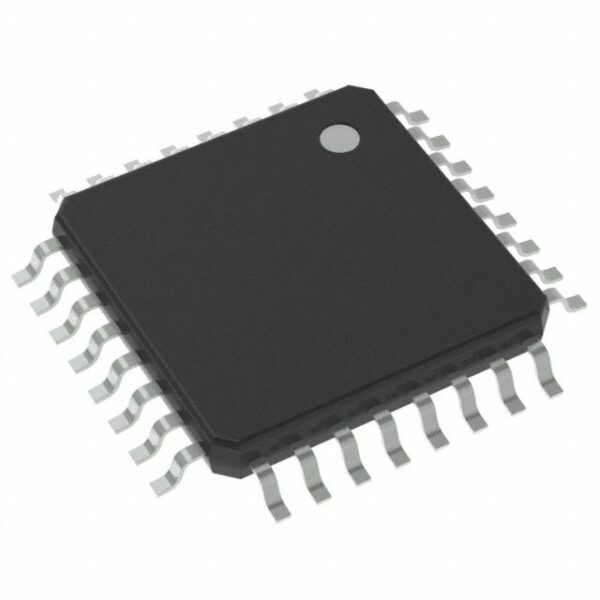

| Specification of ATMEGA48PA-15AZ | |
|---|---|
| Status | Active |
| Series | Automotive, AEC-Q100, AVR? ATmega |
| Package | Tape & Reel (TR),Cut Tape (CT),Digi-Reel? |
| Supplier | Microchip Technology |
| Digi-Key Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | IC, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 4KB (2K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 512 x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 125C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-TQFP |
| Supplier Device Package | 32-TQFP (7×7) |
Applications
The ATMEGA48PA-15AZ is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and robust performance.
- Consumer Electronics: Ideal for smart home devices due to its low power consumption and efficient operation.
- Medical Devices: Suitable for portable medical equipment where size and battery life are critical.
- Automotive Systems: Can be found in vehicle diagnostics and infotainment systems.
- Embedded Systems: Commonly used in embedded applications that require precise timing and low power usage.
Operating Temperature Range: -40¡ãC to +85¡ãC
Key Advantages
1. **High Performance Microcontroller:** Equipped with a powerful 8-bit microcontroller designed for demanding applications.
2. **Advanced Memory Management Unit (MMU):** Offers enhanced memory protection and management capabilities.
3. **Power Efficiency:** Features a low-power sleep mode that significantly reduces energy consumption during inactive periods.
4. **Certification Standards:** Meets stringent industrial and automotive safety standards, ensuring reliable performance in critical environments.
Frequently Asked Questions
Q1: What is the maximum operating frequency of the ATMEGA48PA-15AZ?
A1: The ATMEGA48PA-15AZ supports a maximum operating frequency up to 16 MHz.
Q2: Is the ATMEGA48PA-15AZ compatible with other ATMEGA series microcontrollers?
A2: Yes, it is fully backward compatible with most ATMEGA series microcontrollers, allowing easy integration into existing projects.
Q3: In which specific scenarios would you recommend using the ATMEGA48PA-15AZ?
A3: The ATMEGA48PA-15AZ is recommended for applications requiring both high performance and low power consumption, such as in portable medical devices and consumer electronics.
