| Specification of ATMEGA48P-20MU | |
|---|---|
| Status | Active |
| Series | AVR? ATmega |
| Package | Tray |
| Supplier | Microchip Technology |
| Digi-Key Programmable | Verified |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | IC, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 4KB (2K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 512 x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 85C (TA) |
| Mounting Type | Surface Mount |

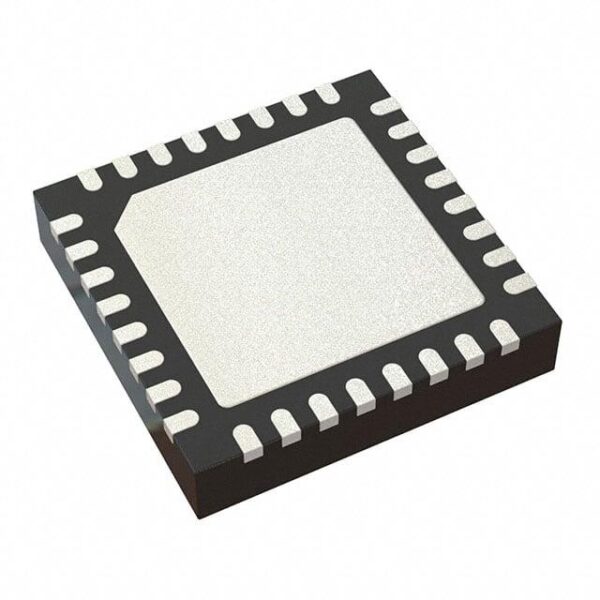

| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5×5) |
Applications
The ATMEGA48P-20MU is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and robust performance.
- Consumer Electronics: Ideal for small electronic devices like smartwatches and fitness trackers due to its low power consumption.
- Automotive: Suitable for automotive electronics where space and energy efficiency are critical.
- Medical Devices: Can be found in medical equipment that demands precise timing and low power operation.
- Embedded Systems: Commonly used in embedded systems where it provides reliable processing capabilities.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. **High Performance:** The ATMEGA48P-20MU offers fast processing speeds and efficient memory management.
2. **Unique Architecture Feature:** It includes a built-in hardware multiplier which significantly improves computational tasks.
3. **Power Efficiency:** Designed with low-power modes to extend battery life in portable devices.
4. **Certification Standards:** Meets international safety and quality standards ensuring reliability and compliance.
Frequently Asked Questions
Q1: What is the maximum clock frequency supported by the ATMEGA48P-20MU?
A1: The ATMEGA48P-20MU supports a maximum clock frequency of up to 20 MHz.
Q2: Is the ATMEGA48P-20MU compatible with other microcontrollers from the same series?
A2: Yes, it is fully backward compatible with other microcontrollers from the same series, allowing easy integration into existing projects.
Q3: In what specific scenarios would you recommend using the ATMEGA48P-20MU over other microcontrollers?
A3: The ATMEGA48P-20MU is recommended when high performance and low power consumption are crucial, such as in battery-operated devices or industrial automation systems requiring precise timing.
