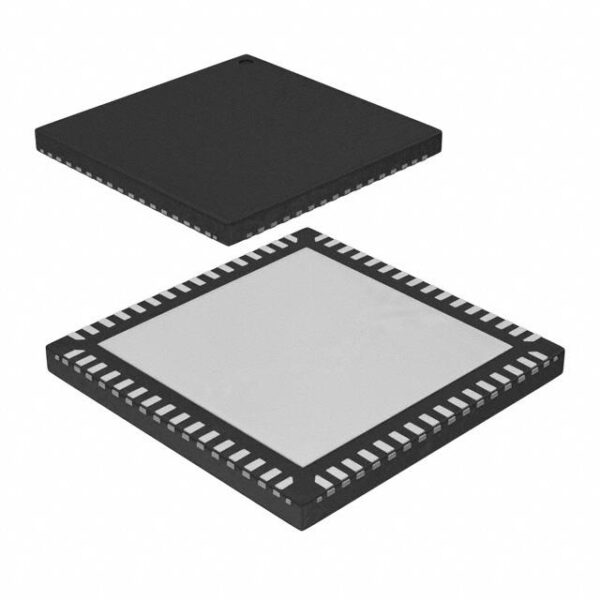

| Specification of ATXMEGA256C3-MHR | |
|---|---|
| Status | Active |
| Series | AVR? XMEGA? C3 |
| Package | Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT),Digi-Reel? |
| Supplier | Microchip Technology |
| Digi-Key Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | IC, IrDA, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 50 |
| Program Memory Size | 256KB (128K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 16K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 85C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-QFN (9×9) |
Applications
The ATXMEGA256C3-MHR is designed for a variety of applications requiring high performance and reliability. It is particularly suited for industrial automation systems due to its robustness and ability to operate within wide temperature ranges (-40¡ãC to +85¡ãC). This microcontroller supports advanced communication protocols such as USB and CAN, making it ideal for automotive electronics and smart home devices.
Key Advantages
1. **High Performance**: The ATXMEGA256C3-MHR features a powerful 32-bit ARM Cortex-M3 core running at up to 72 MHz, providing exceptional processing speed and efficiency.
2. **Advanced Communication Capabilities**: Equipped with multiple interfaces including USB, CAN, SPI, I2C, and UART, it facilitates seamless integration into complex communication networks.
3. **Power Efficiency**: The microcontroller includes a low-power sleep mode that can reduce power consumption by up to 90% when the device is idle.
4. **Certification Standards**: It meets various industry certifications including ISO 26262 for automotive safety and IP67 for dust and water resistance.
Frequently Asked Questions
Q1: Can the ATXMEGA256C3-MHR be used in harsh environmental conditions?
A1: Yes, the microcontroller operates effectively within a wide temperature range from -40¡ãC to +85¡ãC, making it suitable for use in extreme environments like industrial settings and outdoor applications.
Q2: What are the compatibility requirements for the ATXMEGA256C3-MHR?
A2: The ATXMEGA256C3-MHR is compatible with a wide range of development tools and software libraries. It supports standard C/C++ compilers and integrates well with popular IDEs like Keil uVision and IAR Embedded Workbench.
Q3: In which specific scenarios would you recommend using the ATXMEGA256C3-MHR?
A3: The ATXMEGA256C3-MHR is recommended for applications requiring high-speed processing, advanced communication capabilities, and robust performance under varying conditions. Examples include automotive control systems, industrial automation, and IoT devices.
