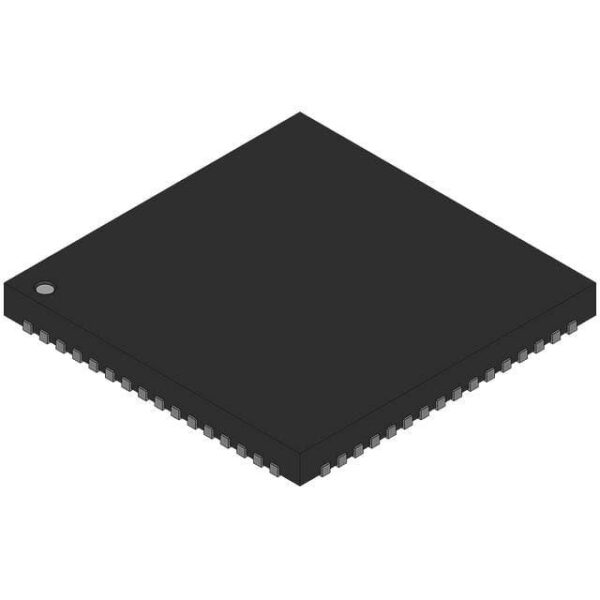

| Specification of ATXMEGA256C3-MH | |
|---|---|
| Status | Active |
| Series | AVR? XMEGA? C3 |
| Package | Tray |
| Supplier | Microchip Technology |
| Digi-Key Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | IC, IrDA, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 50 |
| Program Memory Size | 256KB (128K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 16K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 85C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-QFN (9×9) |
Applications
The ATXMEGA256C3-MH is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and robustness.
- Consumer Electronics: Ideal for smart home devices due to its low power consumption and efficient performance.
- Medical Devices: Suitable for medical equipment that demands precise timing and energy efficiency.
- Automotive Systems: Employed in vehicle electronics where durability and safety are paramount.
- Embedded Systems: General-purpose microcontroller used in a wide range of embedded applications.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. High Performance Microcontroller: Equipped with advanced processing capabilities and extensive I/O pins.
2. Enhanced Security Features: Includes hardware-based security mechanisms like secure boot and encryption support.
3. Power Efficiency: Designed with low-power modes to extend battery life in portable devices.
4. Compliance Standards: Meets international certification requirements such as CE, FCC, and RoHS.
Frequently Asked Questions
Q1: What are the main features of the ATXMEGA256C3-MH?
A1: The ATXMEGA256C3-MH offers high-performance microcontroller functionality, enhanced security features, and excellent power efficiency. It supports a wide range of applications from industrial automation to consumer electronics.
Q2: Is the ATXMEGA256C3-MH compatible with other components?
A2: Yes, it is fully compatible with a variety of peripherals and other microcontrollers through standard communication protocols like UART, SPI, and I2C.
Q3: In which specific scenarios can the ATXMEGA256C3-MH be utilized?
A3: The ATXMEGA256C3-MH can be used in scenarios requiring high precision and reliability, such as in automotive safety systems, medical monitoring devices, and smart home appliances.
