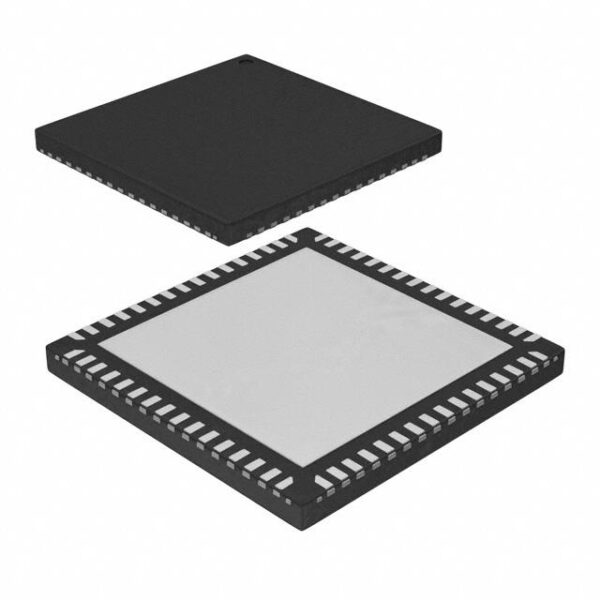

| Specification of ATXMEGA256A3BU-MN | |
|---|---|
| Status | Active |
| Series | AVR? XMEGA? A3BU |
| Package | Tray |
| Supplier | Microchip Technology |
| Digi-Key Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | IC, IrDA, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 47 |
| Program Memory Size | 256KB (128K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 16K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-QFN (9×9) |
Applications
The ATXMEGA256A3BU-MN is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and robust performance.
- Consumer Electronics: Ideal for smart home devices due to its low power consumption and efficient processing capabilities.
- Medical Devices: Suitable for medical equipment that demands precise timing and energy efficiency.
- Automotive Systems: Can be utilized in vehicle diagnostics and infotainment systems.
- Embedded Systems: General-purpose microcontroller for embedded applications needing flexibility and performance.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. **High Performance:** Equipped with advanced instruction set and enhanced memory options.
2. **Flexible Architecture:** Supports multiple communication protocols like USB, CAN, and SPI.
3. **Power Efficiency:** Designed with low-power modes to extend battery life in portable devices.
4. **Certification Standards:** Meets international safety and quality standards such as ISO 9001 and CE marking.
Frequently Asked Questions
Q1: What is the maximum clock frequency supported by the ATXMEGA256A3BU-MN?
A1: The ATXMEGA256A3BU-MN supports up to 48 MHz clock frequency.
Q2: Is the ATXMEGA256A3BU-MN compatible with other microcontrollers from the same series?
A2: Yes, it is fully backward compatible with other ATXMEGA series microcontrollers but may require specific configuration settings.
Q3: In which specific scenarios would you recommend using the ATXMEGA256A3BU-MN over other microcontrollers?
A3: The ATXMEGA256A3BU-MN is recommended for applications requiring high precision timing and low power consumption, such as in battery-operated devices or industrial automation systems.
