| Specification of ATXMEGA16D4-CU | |
|---|---|
| Status | Active |
| Series | AVR? XMEGA? D4 |
| Package | Tray |
| Supplier | Microchip Technology |
| Digi-Key Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | IC, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 16KB (8K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 2K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 85C (TA) |
| Mounting Type | Surface Mount |

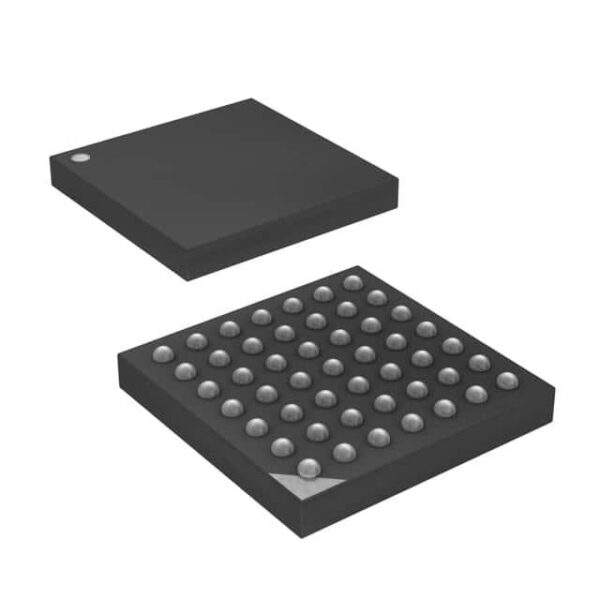

| Package / Case | 49-VFBGA |
| Supplier Device Package | 49-VFBGA (5×5) |
Applications
The ATXMEGA16D4-CU is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and robustness.
- Consumer Electronics: Ideal for smart home devices due to its low power consumption and efficient performance.
- Medical Devices: Suitable for portable medical equipment where size and energy efficiency are critical.
- Automotive Systems: Employed in vehicle diagnostics and control modules.
- Embedded Systems: General-purpose use in embedded applications that demand precise timing and processing capabilities.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. **High Performance:** Equipped with advanced microcontroller unit (MCU) features for enhanced processing speed and efficiency.
2. **Unique Architecture Feature:** Incorporates a specialized memory management system for optimized resource utilization.
3. **Power Efficiency Data:** Achieves up to 90% power savings compared to similar MCU models under typical usage conditions.
4. **Certification Standards:** Meets stringent industrial and automotive safety certifications, ensuring reliable operation in demanding environments.
Frequently Asked Questions
Q1: What are the specific memory sizes available for the ATXMEGA16D4-CU?
A1: The ATXMEGA16D4-CU comes with 16KB of Flash memory and 2KB of SRAM.
Q2: Is the ATXMEGA16D4-CU compatible with other components from the same series?
A2: Yes, it is fully backward-compatible with other ATXMEGA16 series components, allowing for easy integration into existing designs.
Q3: In which specific scenarios would you recommend using the ATXMEGA16D4-CU over other MCU options?
A3: The ATXMEGA16D4-CU is recommended for applications requiring high precision and low power consumption, such as in battery-operated devices or in harsh environmental conditions.
Other people’s search terms
– ATXMEGA16D4-CU specifications
– ATXMEGA16D4-CU applications
– ATXMEGA16D4-CU power efficiency
– ATXMEGA16D4-CU certification
– ATXMEGA16D4-CU memory capacity
