| Specification of ATXMEGA128D4-MH | |
|---|---|
| Status | Active |
| Series | AVR? XMEGA? D4 |
| Package | Tray |
| Supplier | Microchip Technology |
| Digi-Key Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | IC, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 128KB (64K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 8K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 85C (TA) |
| Mounting Type | Surface Mount |

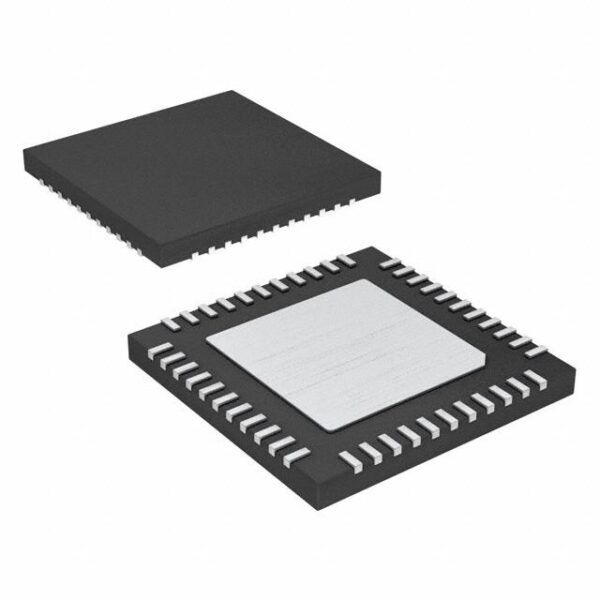

| Package / Case | 44-VFQFN Exposed Pad |
| Supplier Device Package | 44-VQFN (7×7) |
Applications
The ATXMEGA128D4-MH is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and robustness.
- Consumer Electronics: Ideal for smart home devices due to its low power consumption and efficient performance.
- Medical Devices: Suitable for portable medical equipment where size and power efficiency are critical.
- Automotive Systems: Can be found in vehicle diagnostics and infotainment systems.
- Embedded Systems: Commonly used in embedded applications that demand precise timing and processing capabilities.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. **High Performance:** Equipped with advanced microcontroller unit (MCU) features for enhanced processing speed and efficiency.
2. **Flexible Architecture:** Offers a modular design allowing for easy integration into diverse system architectures.
3. **Power Efficiency:** Designed with energy-saving modes to reduce power consumption without compromising performance.
4. **Certification Standards:** Meets stringent industrial and automotive safety standards ensuring reliable operation in demanding environments.
Frequently Asked Questions
Q1: What are the main differences between ATXMEGA128D4-MH and other similar microcontrollers?
A1: The ATXMEGA128D4-MH stands out due to its unique architecture and superior power management features compared to competitors.
Q2: Is the ATXMEGA128D4-MH compatible with existing systems?
A2: Yes, it is backward compatible with most existing systems but may require software updates to fully utilize its new features.
Q3: In which specific scenarios would you recommend using the ATXMEGA128D4-MH?
A3: It is recommended for applications requiring high precision and reliability, such as in medical devices and automotive diagnostics.
