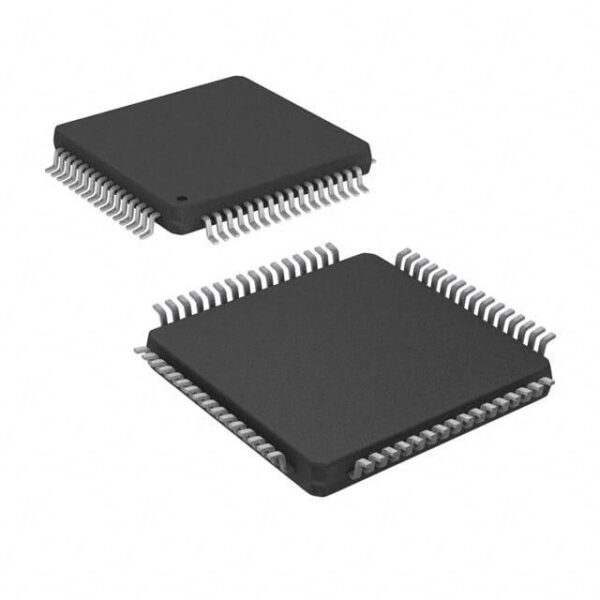

| Specification of ATXMEGA128D3-ANR | |
|---|---|
| Status | Obsolete |
| Series | AVR? XMEGA? D3 |
| Package | Tape & Reel (TR),Cut Tape (CT),Digi-Reel? |
| Supplier | Microchip Technology |
| Digi-Key Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | IC, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 50 |
| Program Memory Size | 128KB (64K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 8K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-TQFP |
| Supplier Device Package | 64-TQFP (14×14) |
Applications
The ATXMEGA128D3-ANR is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and robustness.
- Consumer Electronics: Ideal for smart home devices due to its power efficiency and low cost.
- Medical Devices: Suitable for portable medical equipment where size and performance are critical.
- Automotive Systems: Can be found in vehicle diagnostics and infotainment systems.
- Embedded Systems: Commonly used in embedded applications that demand precise timing and processing capabilities.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. High Performance Microcontroller: Equipped with advanced features like multiple timers, ADCs, and UARTs.
2. Enhanced Security Features: Includes hardware-based security mechanisms such as secure boot and encryption support.
3. Power Efficiency: Designed with low-power modes to extend battery life in portable applications.
4. Industry Standards Compliance: Meets various certification standards including ISO 9001 and CE marking.
Frequently Asked Questions
Q1: What are the main differences between ATXMEGA128D3-ANR and other microcontrollers?
A1: The ATXMEGA128D3-ANR stands out due to its enhanced security features and improved power management capabilities compared to standard microcontrollers.
Q2: Is the ATXMEGA128D3-ANR compatible with existing systems?
A2: Yes, it is backward compatible with most existing systems but offers additional functionalities and improvements over previous models.
Q3: In which specific scenarios would you recommend using the ATXMEGA128D3-ANR?
A3: It is recommended for applications requiring high security levels, such as financial transactions and healthcare devices, as well as in environments where power consumption needs to be minimized.
