| Specification of ATXMEGA128B1-AU | |
|---|---|
| Status | Active |
| Series | AVR? XMEGA? B1 |
| Package | Tray |
| Supplier | Microchip Technology |
| Digi-Key Programmable | Verified |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | IC, IrDA, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 53 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 8K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 85C (TA) |
| Mounting Type | Surface Mount |

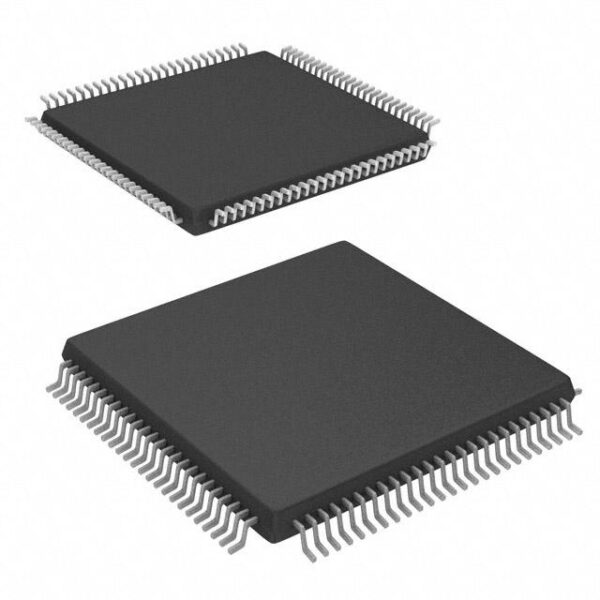

| Package / Case | 100-TQFP |
| Supplier Device Package | 100-TQFP (14×14) |
Applications
The ATXMEGA128B1-AU is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and robustness.
- Consumer Electronics: Ideal for smart home devices due to its low power consumption and efficient performance.
- Medical Devices: Suitable for portable medical equipment where size and power efficiency are critical.
- Automotive Systems: Can be found in vehicle diagnostics and infotainment systems.
- Embedded Systems: Commonly used in embedded applications that demand precise timing and processing capabilities.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. **High Performance:** Equipped with advanced microcontroller unit (MCU) features for enhanced processing speed and efficiency.
2. **Flexible I/O Capabilities:** Offers a wide range of input/output pins supporting diverse connectivity options.
3. **Power Efficiency:** Designed with energy-saving modes to reduce power consumption without compromising performance.
4. **Certification Standards:** Meets stringent industrial and automotive standards ensuring reliability and safety.
Frequently Asked Questions
Q1: What is the maximum clock frequency supported by the ATXMEGA128B1-AU?
A1: The ATXMEGA128B1-AU supports up to 64 MHz clock frequency.
Q2: Is the ATXMEGA128B1-AU compatible with other microcontrollers from the same series?
A2: Yes, it is fully backward-compatible with other ATXMEGA series microcontrollers, allowing easy integration into existing projects.
Q3: In which specific scenarios would you recommend using the ATXMEGA128B1-AU over other microcontrollers?
A3: The ATXMEGA128B1-AU is recommended for applications requiring high precision timing and complex algorithms, such as in automotive diagnostics and industrial automation systems.
Other people’s search terms
– ATXMEGA128B1-AU specifications
– ATXMEGA128B1-AU applications
– ATXMEGA128B1-AU features
– ATXMEGA128B1-AU certification
– ATXMEGA128B1-AU performance
