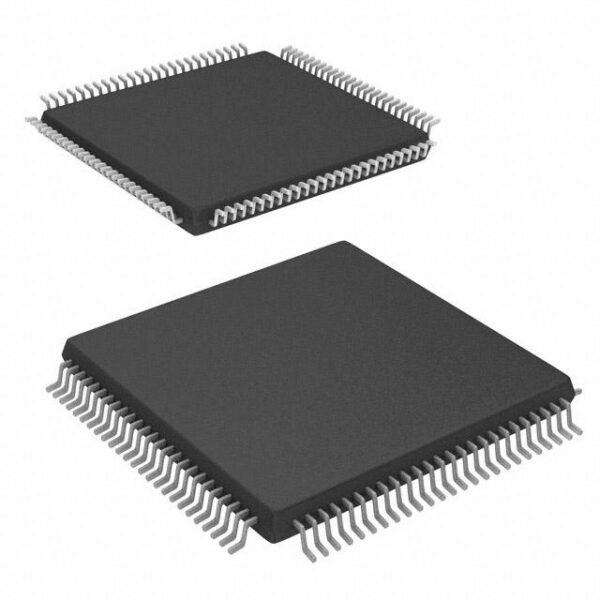

| Specification of ATXMEGA128B1-AN | |
|---|---|
| Status | Active |
| Series | AVR? XMEGA? B1 |
| Package | Tray |
| Supplier | Microchip Technology |
| Digi-Key Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | IC, IrDA, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 53 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 8K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 105C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-TQFP |
| Supplier Device Package | 100-TQFP (14×14) |
Applications
The ATXMEGA128B1-AN microcontroller is versatile and suitable for various applications due to its robust features and high performance. Here are some key use cases:
- Industrial Automation: Its strong processing capabilities make it ideal for controlling complex machinery and systems.
- Home Automation Systems: The ATXMEGA128B1-AN can be used to manage smart home devices efficiently.
- Medical Devices: With its precision and reliability, it supports critical medical equipment.
- Automotive Electronics: It enhances vehicle diagnostics and control systems.
- Consumer Electronics: Perfect for enhancing the functionality of consumer gadgets like smartphones and tablets.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. High Performance Processor: Equipped with a powerful processor that ensures fast execution of tasks.
2. Advanced Memory Management: Offers efficient memory handling which optimizes system performance.
3. Power Efficiency: Designed to consume minimal power while maintaining high performance levels.
4. Diverse Communication Interfaces: Supports multiple communication protocols for seamless integration into different systems.
Frequently Asked Questions
Q1: What is the maximum clock frequency supported by the ATXMEGA128B1-AN?
A1: The ATXMEGA128B1-AN supports a maximum clock frequency of up to 64 MHz.
Q2: Is the ATXMEGA128B1-AN compatible with other microcontrollers from the same series?
A2: Yes, the ATXMEGA128B1-AN is fully compatible with other microcontrollers from the same series, ensuring easy integration and interchangeability.
Q3: In which specific scenarios would you recommend using the ATXMEGA128B1-AN over other microcontrollers?
A3: The ATXMEGA128B1-AN is recommended for applications requiring high processing speed and advanced memory management, such as industrial automation and automotive electronics.
