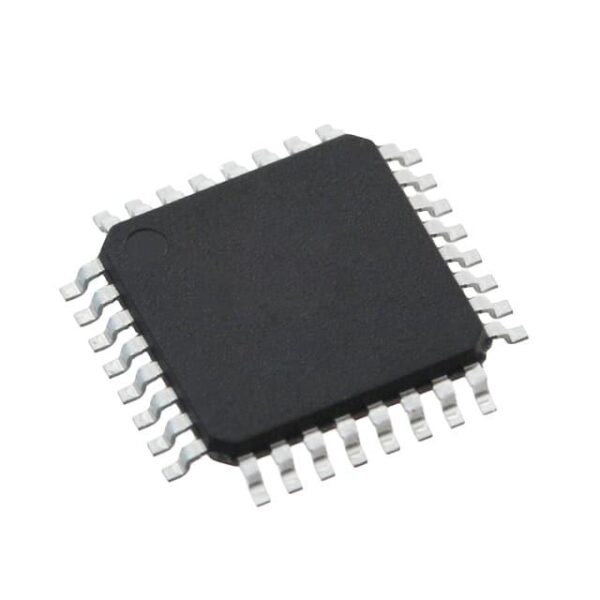

| Specification of ATMEGA48V-10AI | |
|---|---|
| Status | Obsolete |
| Series | AVR? ATmega |
| Package | Tray |
| Supplier | Rochester Electronics, LLC |
| Digi-Key Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 10MHz |
| Connectivity | IC, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 4KB (2K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 512 x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 85C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-TQFP |
| Supplier Device Package | 32-TQFP (7×7) |
Applications
The ATMEGA48V-10AI is versatile and suitable for various applications across different industries:
- Industrial Automation: Used in control systems requiring high reliability and robust performance.
- Consumer Electronics: Ideal for smart home devices due to its low power consumption and efficient operation.
- Medical Devices: Suitable for portable medical equipment where size and energy efficiency are critical.
- Automotive Systems: Can be found in vehicle diagnostics and infotainment systems.
- Embedded Systems: Commonly used in embedded applications that require precise timing and low-power operation.
Operating Temperature: -40¡ãC to +85¡ãC
Key Advantages
1. **High Performance Microcontroller:** Equipped with a powerful 8-bit microcontroller designed for demanding applications.
2. **Advanced Memory Management:** Includes enhanced memory management features for improved system stability and performance.
3. **Power Efficiency:** Optimized for low power consumption, making it ideal for battery-operated devices.
4. **Certification Standards:** Meets stringent industrial and automotive certification standards ensuring safety and reliability.
Frequently Asked Questions
Q1: What is the maximum operating temperature range supported by the ATMEGA48V-10AI?
A1: The ATMEGA48V-10AI operates within a wide temperature range from -40¡ãC to +85¡ãC, making it suitable for diverse environments.
Q2: Is the ATMEGA48V-10AI compatible with other components in my existing system?
A2: Yes, the ATMEGA48V-10AI is backward-compatible with most standard peripheral interfaces, ensuring seamless integration into your current system design.
Q3: In which specific scenarios would I use the ATMEGA48V-10AI?
A3: The ATMEGA48V-10AI excels in scenarios requiring high precision and reliability, such as in industrial automation, medical devices, and automotive systems where robustness and performance are paramount.
Other people’s search terms
– ATMEGA48V-10AI specifications
– ATMEGA48V-10AI applications
– ATMEGA48V-10AI advantages
– ATMEGA48V-10AI compatibility
– ATMEGA48V-10AI use cases
