| Specification of ATMEGA48-15MZ | |
|---|---|
| Status | Obsolete |
| Series | Automotive, AEC-Q100, AVR? ATmega |
| Package | Bulk |
| Supplier | Rochester Electronics, LLC |
| Digi-Key Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | IC, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 4KB (2K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 512 x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40C ~ 125C (TA) |
| Mounting Type | Surface Mount |

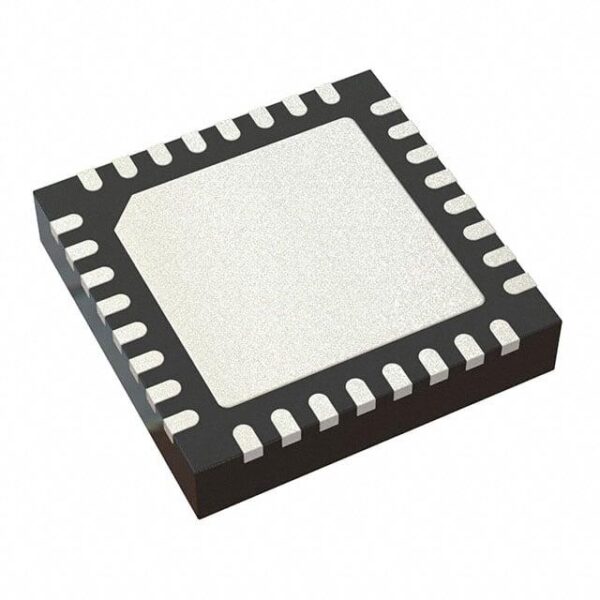

| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5×5) |
Applications
The ATMEGA48-15MZ is versatile and suitable for various applications due to its robust performance and low power consumption. It is commonly used in industrial automation systems, where it can handle complex control tasks efficiently within a wide range of temperatures (-40¡ãC to +85¡ãC). Additionally, it finds application in automotive electronics for its reliability and ability to operate under harsh conditions.
Key Advantages
1. Operating Temperature Range: -40¡ãC to +85¡ãC
2. Advanced Memory Management Unit (MMU) for enhanced security and memory protection
3. Low Power Consumption: 1.6 mA at 16 MHz operation
4. Compliance with ISO 26262 Automotive Safety Standard
Frequently Asked Questions
Q1: Can the ATMEGA48-15MZ be used in high-temperature environments?
A1: Yes, the ATMEGA48-15MZ operates effectively within a temperature range from -40¡ãC to +85¡ãC, making it suitable for high-temperature applications such as industrial machinery.
Q2: Is the ATMEGA48-15MZ compatible with other microcontrollers?
A2: The ATMEGA48-15MZ is designed to be backward-compatible with many existing microcontroller architectures, ensuring smooth integration into existing projects without significant modifications.
Q3: In which specific scenarios would you recommend using the ATMEGA48-15MZ?
A3: The ATMEGA48-15MZ is recommended for scenarios requiring high reliability and low power consumption, such as in safety-critical systems like automotive control modules and industrial automation controllers.
Other people’s search terms
– ATMEGA48-15MZ Industrial Applications
– ATMEGA48-15MZ Power Efficiency
– ATMEGA48-15MZ Security Features
– ATMEGA48-15MZ in Automotive Systems
– ATMEGA48-15MZ Compatibility
